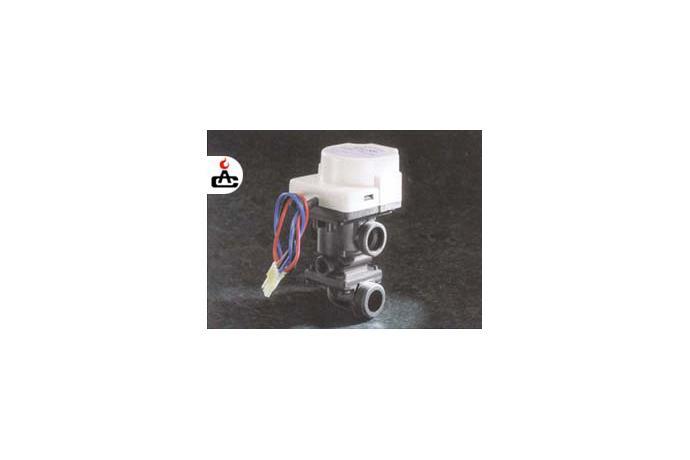

Motorised Three Way Valve
Model Name
ATV300-01
Data
-
Manufacturer information
provider logo
ALCO

Boiler parts for home and Industrial combustor parts manufacturer, Vibration valve, Water flow sensor, Pressure switch and more

Problem with product info?
Update request
Manufacturer
ALCO
Brand
-
SKU
54031
Product Name
Motorised Three Way Valve
Model Name
ATV300-01
Size
-
Weight
-
Product Details

3 WAY VALVE

GENERAL DESCRIPTION
Motorised three way ON-OFF valve.

OPERATION FEATURES
 ● Fluid water
 ● Max. working pressure 3.0 bar
 ● Max. fluid temperature 90℃
 ● Max. ambient temperature 60℃
 ● Working time 6 or 12 sec. (50Hz)
 ● Power consumption 3W
 ● Power supply 220/240 Vac 50/60Hz
 ● Body material nylon 66 reinforced GF 30%



WIRING DIAGRAM
ALCO Motorised Three Way Valve ATV300-01



 PRESSURE DROP DIAGRAM

ALCO Motorised Three Way Valve ATV300-01 1



 CONVERSION TABLE

P

KPa

m.c.a

bar

1KPa

1

0.1

0.01

1m.c.a

10

1

0.1

1 bar

100

10

1



 DIMENSIONS

ALCO Motorised Three Way Valve ATV300-01 2
