Overview

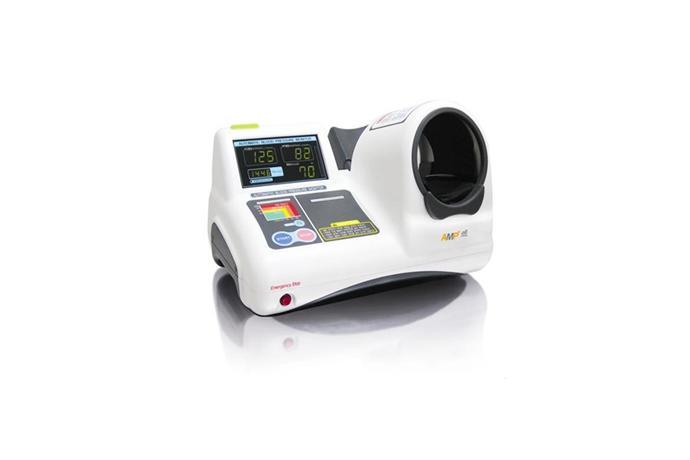

The BP868F is an one-touch full automatic blood pressure monitor which offers accurate and precise results. This device automatically determines the pressure to apply to the cuff, creating the optimum measuring conditions to provide accurate measurement results.
Features
Measuring Method | Oscillometric method |
---|---|
Exhaustion Method | Automatic exhaustion by micro controller |
Pressure Detection | Semiconductor strain gauge |
Weight | 12KG |
Dimension | 460(W) x 310(D) x 296(H) |
Specification
Display Method | LED 7-segment-display (FND) |
---|---|
Measurement Scope | Pressure 0~300mmHg, pulse 30~240/min |
Minimum Measurement Unit | 1mmHg |
Accuracy | Pressure ±2mmHg, Pulse ±3% |
Cuff Operation | Belt operation using micro controller |
Pressurizing Time | Approximately 10 seconds |
Measuring Time | Approximately 30 seconds |
Thermal Printer (Auto cutting-option) | |
Power | AC 110/220C ~ 230V |
Frequency | 50/60 Hz |
Communication Function | Computer, RS232C Communication (option) |
Emergency Stop | Stops by microprocessor |
Voice Support | Provides voice guide when measuring the blood pressure, provides message for blood pressure Value and errors after taking measurements |
Power consumption | 30VA |
Operating Range | Temperature +10 ~ +40, Humidity 95% or less |
Storing condition | Temperature -5 ~ +50, Humidity 95% or less |
Parts | 1 power cord, record paper, arm rest, user manual |
Options | Hemodynamics print, auto-cutting thermal printer, rear side display, communication cable (option), Blood pressure management program CD (option) |
