Product Details
MIL-DTL-26482 PERFORMANCE WITHOUT MIS-MATING

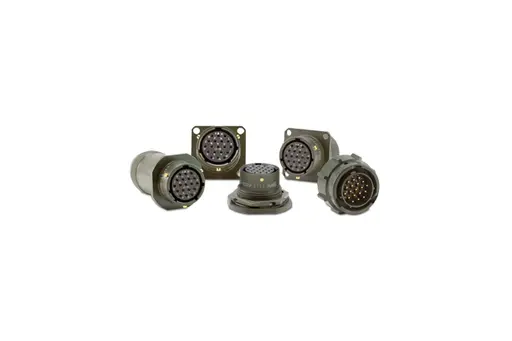

Amphenol’s 62GB series connectors are similar to MIL-DTL-26482 but with the advantage of keyway orientation to reduce mis-mating among multiple connectors. They feature aluminum shells with brass or stainless steel options available. PEI-Genesis is one of the largest assemblers of 62GB connectors in the world. For full product specifications on Amphenol 62GB Series connectors, please see the tables below.
Get shopping! Part numbers begin with 62GB.
Features
- Rugged Shell
Machined aluminum alloy shell and hardware create an exceptionally strong connector. These connectors have been used extensively in commercial, military, and aerospace environments. Standard shells accept most MIL-DTL-26482 accessories. - Environmentally-Sealed
Complete moisture sealing is achieved by combining four seals: shell, peripheral, interfacial, and wire. Wire seal is accomplished by multiple ripple design, exceeding the wire sealing requirements of MIL-DTL-26482. - Resistant to Harshest Environments
These connectors will operate in temperatures from -67˚F to +257˚F (-55˚C to +125˚C) under the harshest possible conditions. - Wide Range of Wire Guages and Current-Carrying Capability
Up to 45 amps with wire gauges from size 24 to 8 AWG wire. - Resilient Insulator & Grommet
A resilient neoprene insulator and integrated rear-wire sealing grommet guarantees a liquid-tight assembly. Solder contacts are permanently bonded into the insulator. - Solder Gold-Plated Contacts
62GB connector contacts are gold-plated. Socket contacts are closed to eliminate damage from test probes and to help prevent misaligned pins during engagement. - Agency Approvals
Based on MIL-DTL-26482.
Materials & Finishes
Shell
Aluminum Alloy, Brass, or Stainless Steel
Shell Plating
Green Zinc Cobalt, Black Zinc Cobalt, Black Zinc Nickel, Cadmium, Anodized, Electroless Nickel, or Zinc Alloy
Contacts
Copper alloy
Contact Platings
Gold plate, 50 microinches minimum per MIL-G-45204 type II
Insulator
Polychlroprene rubber compound
Electrical Data
Operating Voltage & Test Voltage per BS9500 F0017, clause 7.1.2
* Each insulator layout has a specific “service rating.
Current Rating
Wire Range Sizes
24 to 8 AWG
Contact Resistance
When tested to MIL-STD-1344 Method 3004, will not exceed voltage drops listed in table above. Consult MIL-DTL-26482, 3.6.4 for details.
Insulation Resistance
5,000 megohms minimum at 77˚F (25˚C)
Mechanical
Operating Temperature
-67ºF to +257ºF (-55ºC to +125ºC)
Sealing
48 hours in six feet of water per MIL-DTL-26482 4.6.14. Meets 10- and 20-day 50-95% humidity testing per MIL-STD-1344 Method 1002.2 per MIL-DTL-26482.
Wire Sealing Range
All dimensions in inches (millimeters in parentheses)
Insulation Strip Length
All dimensions in inches (millimeters in parentheses)
Mating Life
500 cycles minimum
Salt Spray
48 hours in mated conditions: 1974, clause 1.2.6.17 Severity 1 tested in mated conditions. The salt spray endurance of 62GB connectors with specific plating deviations could potentially be extended (for example, cadmium plating can withstand 500h, black zinc-nickel 200h exposure to salt spray and stainless steel as much as 2000h), but without testing, the plating on a 62GB connector performance cannot be guaranteed.
Heat
+347˚F (+175˚C) for 1000 hours to MIL-STD-1344 Method 1005.1 per MIL-DTL-26482.
Chemical Resistance
Immersion in solvents and fluids including aircraft fuels, lubricating oils and hydraulic fluids.
Vibration
10 to 2,000Hz (15g’s) 10 microseconds maximum discontinuity. To MIL-STD-1344 Method 2005 per MIL-DTL-26482.
Shock
100g limit. 11ms duration, three major axes. 10 microseconds maximum discontinuity. To MIL-STD-1344 Method 2004 per MIL-DTL-26482.
Contact Type
Solder, crimp, PC
Number of Circuits
2 to 61
Contact Retention
To MIL-STD-1344A Method 2007 per MIL-DTL-26482
Polarization
Five-keyway, three-point bayonet with optional rotational polarization and keyway positions.
All dimensions in inches (millimeters in parentheses)
