EXCLUSIVE WORLDWIDE ASSEMBLER OF AMPHE-EXTM CIRCULAR CONNECTORS

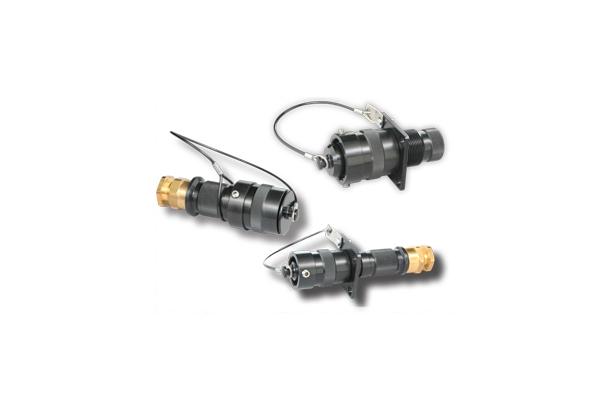

Amphenol explosion proof connector series Amphe-EXTM is ATEX and IECex-approved for Zone 1-rated (Europe) (IECex 60079). Amphenol Amphe-EXTM are the only EX explosion proof hazardous area threaded connectors that allow a signal to pass through Zone rated areas using the use of copper, coax and fibre optic contacts in one product. These circular connectors are equipped to handle signal, power, or RF requirements in industrial and harsh environments.
PEI-Genesis is the only approved worldwide assembling distributor. See the specifications below for a full listing of Amphenol Amphe-EXTM explosion proof connector features and certifications.
Get shopping! Amphe-EXTM part numbers begin with EXM.
Features
- Material
The shells are machined from high-tensile strength aluminum and plated with a hard anodic coating or stainless steel to withstand the most extreme environments. - Contact Types
There are many sizes and types with different contact configurations that can be used on this connector series. Insert patterns ranging from 2 to 79 contacts include RF, fibre optic, and coaxial. - Mating System
The Double-Lead Acme threaded coupling systems ensure a positive mating which allows for self-cleaning mating action and does not clog with ice, mud, snow, or sand. Inserts are compatible with the D38999 series III layouts up to shell size 21. - Keying
Additional keying of the shells ensure that mis-mating of similar connectors does not occur in explosive environments. - Physical Size
Smaller interface than most heavy-duty, hazardous-rated connectors. - Ease of Assembly
Conductors are easily terminated to the contacts with ample space to slip cable housing over conductors to eliminate seating of inserts and cumbersome handling. - Accomodation of Various Cable Types
The cable gland terminations allow for the use of various types of cable in the construction such as unarmored, armored, and sheathed cable. Flexible cables such as SOOW-A,W, G-GC and DLO can also be used. - Approvals
ATEX for Zone 1-IIC, IECex, and Centelec IP68-rated.
Materials & Finishes
Electrical Data
Contact Sizes 22D, 20, 16, 12, and 8
Operating Voltage & Test Voltage (Unmated Condition)
Current Rating by Contact Size and Wire Accommodation (Test Amps) (Unmated Condition)
Contact Resistance of Mated Contacts End-to-End
Insulation Resistance 5,000 megohms minimum
Mechanical
Wire Sealing Range
Insulation Strip Length
All dimensions in inches (millimeters in parentheses)
Contact Retention
Polarization Five keyways with optional master keyway rotations (Note insert and main keyways remain fixed)
Approvals
 |
EEx dIIC T6 / Ex tD A21 IP68 (Plug and Receptacles) |
AMPHENOL AMPHE-EXTM SERIES RJ45 AMPHE-EXTM
