HARD ANODIC COATING ALLOWS FOR HEAT RESISTANCE UP TO 750° F (399° C)

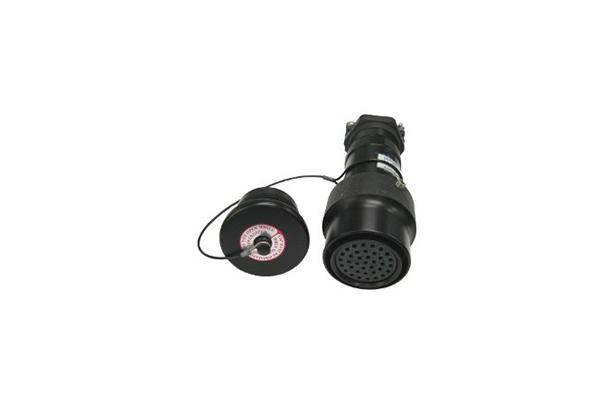

Amphenol Explosion-proof EX connectors ATEX certified for Zone 1 Ex d IIC hazardous environment, IP68 rated, and IECex certified (IECex 60079). With a broad range of reversible inserts; solder, crimp and pressure terminals; and flexible cable options, Star-Line EX connectors will meet application demands in petrochemical refineries, land and offshore drilling systems. RoHS compliant products are also available.

We offer Variable Frequency Drive options for clean 1 connector and 1 cable solution.

Features

• ATEX Certified
  For Zone 1-IIc hazardous environment. For certificate, contact factory.
• IECEx Certified
  For certificate, contact factory.
• Cenelec IP68 Rated
  Cable connectors listed under Ex d IIc T6. Panel mount receptacles listed under Ex de IIc T6.
• Hard Anodic Coating
  All machined aluminum parts finished with a hard, scratch-resistant coating per MIL-A-8625, Type III. Dielectric strength 1800 volts. Heat resistance of 750°F.
• Reversible Inserts
  A full range of contact inserts for power, signal and mixed applications are available. All are interchangeable and reversible to suit specific needs.
• Easily Accessible Wire Terminals
  Conductors are readily terminated to contacts. Cable housings are slipped over conductors or leads after terminating. Cumbersome handling and seating of inserts with conductors attached is eliminated.
• High Tensile Strength Aluminum
  Bar Stock Components precision machined. Points of impact designed for extra strength.
• Cable Options
  Starline EX Series can be terminated onto unarmored or armored and sheathed cables built to IEEE-45 / UL1309, IEC, BS, DIN and JIC standards. Flexible cables like SOOW-A, W, G-GC and DLO constructions can also be used with this Series.
• EX Cable Glands
  Wide variety of glands are available for Star-Line EX connectors.
• Insert Variety
  1 to 143 contacts. High amperage up to 1135 amps at 1000V / AC or DC. Contacts are high quality copper with silver plating. (Gold plating available as an option) Composite inserts for power, control and instrumentation service available.
• Radsok® High Amperage Contacts
  Special arrangements are available with RADSOK high amperage contacts. Standard Star-line EX inserts are not interchangeable with new RADSOK contact insert arrangements.
• RoHS Compliant Product Available

Materials & Finishes

Electrical Data

Wire Range Sizes  18 to 777MCM

Current Rating

Mechanical

Operating Temperature  -67ºF to +257ºF (-55ºC to +125ºC)

Insulation Strip Length
