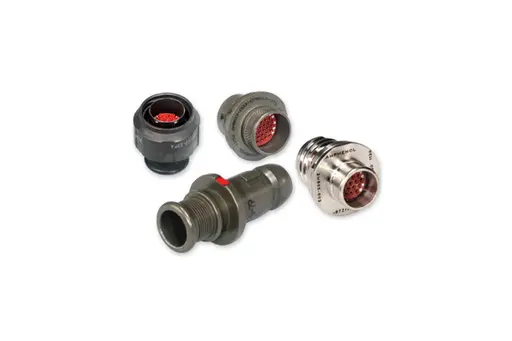

product Image
Amphenol 2M Series Micro-Miniature Connectors
Model Name
-
Series
Connectors
Data
Create part Number-Amphenol-Amphenol 2M Series Micro-Miniature Connectors
Manufacturer information
provider logo
AMPHENOL

Interconnect Product Manufacturer, Electrical, Electronic, Fiber Optic Connectors, Coaxial Cable and more

Problem with product info?
Update request
Manufacturer
AMPHENOL
Brand
-
SKU
141518
Product Name
Amphenol 2M Series Micro-Miniature Connectors
Model Name
-
Size
-
Weight
-
Product Details



INTERMATEABLE WITH GLENAIR MIGHTY MOUSE CONNECTORS

Amphenol 2M series micro-miniature connectors are fully-guaranteed to be intermateable with Glenair Mighty Mouse connectors. The 2M Series is a superior and versatile connector designed and tested to mil-spec standards, comparable to MIL-DTL-38999.

The Amphenol 2M series is a light-weight, micro-miniature circular connector option for mil-spec performance that can withstand harsh environments that require smaller, faster, and stronger connectors such as armored vehicles, data acquisition equipment, airplanes, helicopters, avionic calculators, missiles, and drones.
Amphenol’s micro-miniature 2M series meets D38999 specifications for vibration and shielding, offering better performance than Glenair Mighty Mouse connectors. These Amphenol 2M series connectors are perfect for aviation, military communications, and UAV applications. They are quick-mating and a variety of styles are available. For full product details on Amphenol 2M series connectors, please see our specifications below.

For full product details on Amphenol 2M series connectors, please see our specifications below.





Features





Materials & Finishes

Shell
Aluminum alloy 6061 T6, stainless steel passivated

Insert
Polyphenylene sulfide (PPS)

Contact Retention Clip
Beryllium copper, heat-treated, unplated

Contacts
50u” gold-plated copper alloy

Socket Contact Hood
Passivated stainless steel

Grommet & Seals
Fluorosilicone rubber

Adhesives
Epoxy film & RTV'S

Potting Compound for PCB
& Solder Versions
High-strength epoxy





Electrical Data

Contact Sizes  23, 20, 20HD, 16, & 12 AWG

Operating Voltage & Test Voltage (Mated Condition)



Current Rating (Max)



Contact Resistance

Insulation Resistance  5,000 megaohms minimum





Mechanical

Operating Temperature
-85° F to +302° F (-65°C to +150° C) aluminium
-85° F to +392° F (-65°C to +200° C) stainless steel

Sealing
1 meter for 1-hour (2M803 splashproof)



Insulation Strip Length

All dimensions in inches (millimeters in parentheses)

Mating Life
2000 cycles; 2M803 aluminum 250 cycles

Salt Spray
Plating C & M: 48-hours
Plating MT, NF, ZM, ZN, ZNU, UCR: 500-hours

Fungus
Fungus inert

Random Vibration
2M801 & 2M805: 43.9g ; 2M803 & 2M804: 37g

Gunfire Vibration
No discontinuity greater than 1-microsecond; no cracking, breaking or loosening of parts, plug shall not disengage from receptacle. Connectors meet electrical requirements after vibration test.

Shock
300 G, half-sine, 3ms, 3 axes

EMI-Shielding Effectiveness
55 dB min from 100 MHz to 1000 MHz

Contact Type
Crimp, solder or printed circuit

Number of Contacts
1 to 130



Contact Retention



Contact Separation Force



Coupling Torque

Polarization  Dual-Start ACME Thread coupling, 3 keyways with optional keyway rotations, note insert remained fixed.
