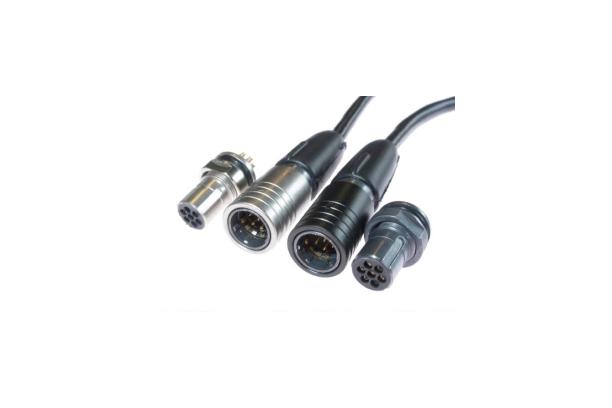

Amphenol PPS Circular Connectors (Push-Pull Series)
Model Name
-
Series
Connectors
Data
-
Manufacturer information
provider logo
AMPHENOL

Interconnect Product Manufacturer, Electrical, Electronic, Fiber Optic Connectors, Coaxial Cable and more

Problem with product info?
Update request
Manufacturer
AMPHENOL
Brand
-
SKU
141520
Product Name
Amphenol PPS Circular Connectors (Push-Pull Series)
Model Name
-
Size
-
Weight
-
Product Details

FULLY-SUBMERSIBLE MINIATURE CONNECTOR

Amphenol PPS miniature circular connectors with Push-Pull technology and RoHS compliant. It is designed for use on equipment that is not submersed or left exposed to the elements for prolonged periods (such as communications systems) in industrial and harsh/rugged military environments. To mate, the plug is pushed onto the receptacle. The connector is locked in its rest position and is released by pulling back the coupling nut.

The PPS has a small outside diameter and several inserts are available, including high-density insert arrangements. The plugs can be fitted with EMC grounding fingers for increased screening effectiveness. The PPS connectors are rated for a minimum of 1000 matings and have an operating temperature range of -55C to +85C.

The plug has a black silver body and backshell with a black coupling nut. Other plating finishes available are electroless nickel and both are chemical and NBC resistant. Receptacles are available in black silver plating as standard and electroless nickel.





Insert Specs

AMPHENOL PPS (PUSH PULL SERIES) - INSERT AVAILABILITY

05-05
5 # 22 AWG Contacts

05-06
6 # 22 AWG Contacts

05-07
7 # 22 AWG Contacts





AMPHENOL PPS (PUSH PULL SERIES) - INSERT SPECIFICATIONS

Contact Arrangement
115 Vac

Working Voltage (Sea Level)
115 Vac

DWV (Sea Level)
500 Vac

Insulation Resistance (Sea Level)
1GΩ @ 500 Vdc

Current Rating (Individual Contact)
3A

Current Rating (all Contacts Simultaneously)
1A





Contact Specs

Contact Resistance
5 mΩ initially - Less than 10 mΩ

Shell to Shell Conductivity
5 mΩ initially - Less than 10 mΩ





Mechanical

Durability
1000 Matings

Materials
Shell : Brass – See Part No. information for plating options
Contacts : Turned, Gold Plated
Inserts and Seal : Proprietary Thermoplastic Polyester Elastomer







Environmental

Temperature
-55° C / +85° C

Salt Spray
500 hours subject to selected plating finish

Fluids
As per MIL-C-26482 Series I

Vibration and Shocky
MIL-C-26482 Series I

Sealing
IP67 Unmated Bulkhead Connectors
IP64 Mated Pair Interface
