Description

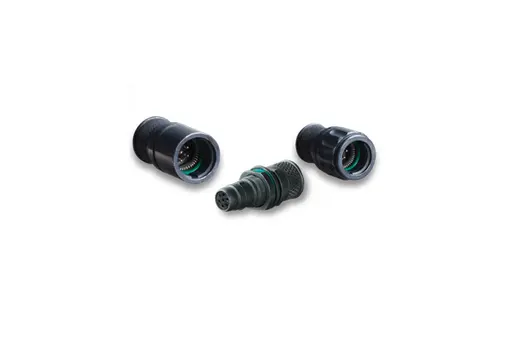

MINIATURE PUSH-PULL CONNECTOR FOR HARSH APPLICATIONS
Amphenol Terrapin SCE2 series of miniature Push-Pull connectors are environmentally-sealed for use in harsh environments. Amphenol Terrapin SCE2 connectors offer silent mating with high mating cycles and a lockable coupling ring to prevent connector break-away. For more product details on our Amphenol Terrapin SCE2 series connectors, please see full specifications below.
Materials & Finishes
Shell Material
Brass / Aluminum
Shell Plating
Black-silver (non-reflective) / Black Zinc Nickel (Aluminum Only)
Contact Material
Copper alloy
Contact Plating
1μM of gold over nickel
Electrical Data
Current Rating
26AWG contacts: 1.5A DC / 20AWG contacts: 7.5A DC
Shell-to-Shell Continuity
10mΩ max (shielded) / 200mΩ max (unshielded)
Contact Resistance
5mΩ initial 10mΩ maximum
Insulation Resistance
1000mΩ minimum production tested to 500mΩ
Working Voltage
400Vac (rms)
Dielectric Withstanding Voltage
2mA maximum leakage
Technical
Mating Durability
2000+ cycles
Backshell Overtorque
19.914 lb.f.in. / 2.25 Nm
Panel Nut Overtorque
19.914 lb.f.in. / 2.25 Nm
Non-magnetic
Yes
Environmental
Operating Temperature Range
-67°F to + 248°F (-55°C to + 125°C)
Temperature Endurance
250 hours +125°C
Sealing (mated and unmated)
IP68, 1 hour at 2 meters*
Air Leakage
Less than 1cc per hour
Salt Spray
Black-silver 1000-hours, Black Zinc Nickel: 500-hours
Altitude Immersion
70,000 feet
RoHS-Compliant
Yes
Suitable for RoHS-Compliant Soldering
Yes
* Contact us if greater depth/duration of sealing is required
