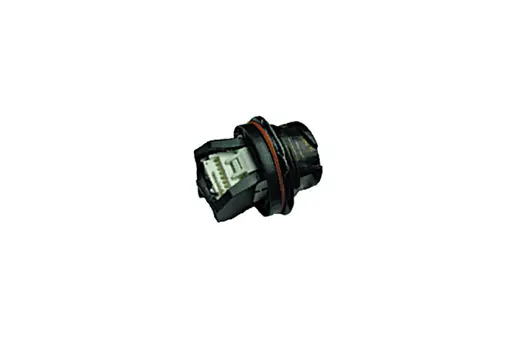

product Image
Amphenol RJF RB Connectors
Model Name
-
Series
Connectors
Data
-
Manufacturer information
provider logo
AMPHENOL

Interconnect Product Manufacturer, Electrical, Electronic, Fiber Optic Connectors, Coaxial Cable and more

Problem with product info?
Update request
Manufacturer
AMPHENOL
Brand
-
SKU
141526
Product Name
Amphenol RJF RB Connectors
Model Name
-
Size
-
Weight
-
Product Details

NO HAZARDOUS ON-FIELD CABLING AND GROUNDING

Amphenol RJF RB series connectors allow for the use of an Ethernet Class D/ CAT5e and Class E/CAT6 connection for Ethernet over twisted-pair networks in harsh environments. The Amphenol RJF RB series are plastic circular connectors with reverse tri-start threading coupling systems. These Amphenol RJF connectors are excellent for harsh conditions – the Amphenol RJ Field RB series’ RJStop® connection system protects from shock, dust and fluid. No hazardous on-field cabling and grounding required!





Features

AMPHENOL RJF RB SERIES CONNECTORS MAIN CHARACTERISTICS

  • Composite material
  • Sealed against fluids and dust (IP68)
  • Shock, vibration, and traction resistant
  • No-cabling operation in-field and no tools required
  • Reverse bayonet coupling
  • RJ45 cordset retention in the plug: 70 N in the axis
  • Mating cycles: 500 min.
  • IDC receptacle
  • PCB receptacle
  • RoHS compliant
  • Cost-effective



AMPHENOL RJF RB SERIES CONNECTORS ENVIRONMENTAL PROTECTION

  • Sealing: IP68
  • Salt Spay > 1000-hour
  • Fire retardant/low smoke: UL94 VO and NFF 16102, DIN 5510-2
  • Thermal shock: 5 cycles at -40°F to +212°F (-40°C to +100°C)
  • Operating temperature: -40°F to +185°F (-40°C to +85°C)



AMPHENOL RJF RB SERIES CONNECTORS DATA TRANSMISSION

  • 10 Base-T, 100 Base-TX and 1000 Base-T networks
  • CAT5e per TIA/EIA 568B and Class D per ISO/IEC 11801
  • CAT6 per TIA/EIA 568B and Class E per ISO/IEC 11801
