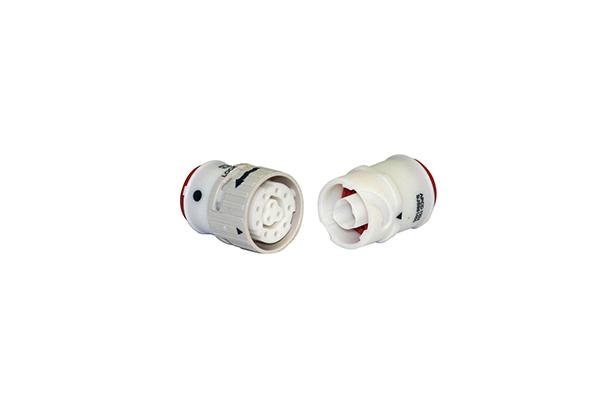

Amphenol Luminus Connectors
Model Name
-
Size
-
Weight
-
Product Details

LIGHT-WEIGHT, COST-EFFECTIVE, “SCOOP-PROOF” CONNECTORS

The Amphenol Luminus Series are light-weight, cost-effective connectors that are highly reliable and simple to use. Amphenol Luminus connectors use AS39029 MIL Spec contacts for broad application compatibility and have a lower cost Stamped & Formed option available. Ideal where space is limited, these innovative, Amphenol Luminus “scoop-proof” connectors feature a locking mechanism that ensures stability, are suitable for blind-mating, and are RoHS compliant.





Features

  • Quick, Simple Connection
    Makes wire installation and maintenance easy and efficient; positive “click” when locked with ¼ turn bayonet coupling system; push and pull system.
  • Interfacial and Triple-Barrier Seal
    Enables environmental sealing (IP 67 rating)
  • AS39029 Contacts
    Accepts standard AS39029 contacts (MIL-C-39029)
  • Stamped & Formed Contacts
    For applications where Mil-Spec contacts are not necessary; lighter vs. Mil-Spec contacts
  • Multiple Keying Positions
    Ensures proper connectivity
  • Multiple Configurations and Accessories
    Flexible product options
  • Durability
    Rugged polyamide housings; 500 mating cycles
  • Blind-Mate Connection
    Polarization feature enables simple, blind mating
  • Visual markings
    Visual aid to help user mate connector





Materials & Finishes

Insulator Body
Polyamide 6/6 (Nylon)

Grommet
Silicone Rubber

Contact Retainer
Stainless Steel

Contacts
Copper Alloy
Stamped & Formed Contact - Hood Stainless Steel
Stamped & Formed Contact - Sleeve Stainless Steel

Plating
Gold-plated 50 microinches per MIL-G-45204 type II, grade C, class I
Stamped & Formed Contact - Selective gold plate over mating area
3-5 microinches over nickel





Electrical Data

Insulation Resistance  5000 Ω Min. @ 500 VDC

Dielectric Withstanding, 60 Hz



Current Rating by Contact Size & Wire Accommodation (Test Amps)



Contact Resistance of Mated Contacts End to-End





Mechanical

Temperature Range
-65°F to 257°F (-65°C to 125°C)

Temperature Life
Push and Pull - 150 hours @ 203°F (95°C)
Twist and Lock - 500 hours @ 185°F (85°C)

Temperature Cycling
Push and Pull - 5 (1) Hour Cycles: 32°F to 203°F (0°C to 95°C)
Twist and Lock - 5 (1) Hour Cycles: -85°F to 257°F (-65°C to 125°C)

Durability
Push and Pull - 50 mating cycles
Twist and Lock - 500 mating cycles

Thermal Shock
Twist and Lock - 85°F to 392°F (-65°C to 200°C)

Altitude Immersion
Twist and Lock - 5% salt solution
5000 Mohms @ 1500 VAC, sea level
5000 Mohms @ 300 VAC, 70K feet
5000 Mohms @ 300 VAC, 100K feet

Vibration
10-2000 Hz, 15G Peak

Shock
Twist and Lock - 100G Sawtooth, 6MS

Salt Spray
Twist and Lock - 5% Salt Spray @ 203°F (95˚C) for 48 hours

Humidity
10 Days @ 77°F to 149°F (25˚C to 65˚C), 90-95% RH

Seal Rating
IP67

Flammability
Push and Pull - UL94, V0
Twist and Lock - UL94, V0, DOTG section 26.6.2 & 26.6.3, FAR Part 25 App F Part I

RoHS & REACH Compliant
Yes

Fluid Immersion
Push and Pull -
Skydrol Hydraulic Fluid
Hydraulic Fluids per MIL-PRF-832282 & MIL-PRF-87257
Ethylene Glycol
Propylene Glycol
Aviation Jet Fuel - A

Twist and Lock -
Lubricating Oil per MIL-PRF-7808
Cleaning Compound per MIL-PRF-87937, Alkaline Base
Isopropyl Alchohol & Mineral Spirit Solution
Skydrol Hydraulic Fluid
Hydraulic Fluids per MIL-PRF-832282 & MIL-PRF-87257
Ethylene Glycol
Propylene Glycol
Aviation Jet Fuel - A
