THERMOPLASTIC DESIGN RATED TO IP67/69K

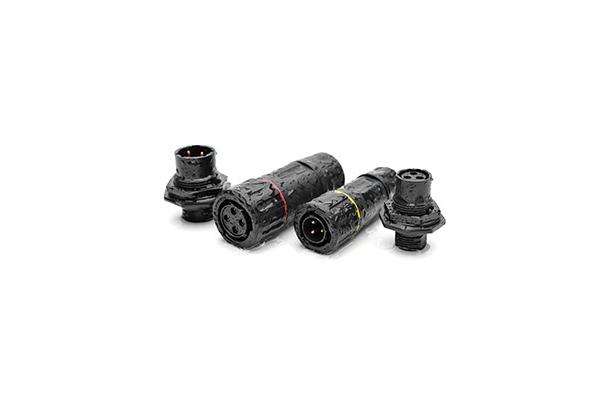

Amphenol Sine Systems’ ecomate® Aquarius™ waterproof bayonet connectors provide an IP67/69K waterproof rating (in mated condition), are corrosion-resistant, and feature a thermoplastic UL94 V-0 shell and low-profile housing for indoor/outdoor applications, such as Solar Energy, Mining, Railway, Marine, Instrumentation, Water Metering, HVAC, Lighting, Closed Circuit TV, Data Infrastructure, and Traffic Control

These waterproof bayonet connectors are designed based on MIL-DTL-26482 and provide quick, reliable mating. The series offers 8, 10, 12, 14, 16, and 18 shell sizes and 27 insert arrangements for power, mixed power/signal, coax, and RJ45 layouts. Additional features include optional In-Line, Jam-Nut, Square-Flanged, PCB, and End Cap configurations.

Amphenol ecomate® Aquarius™ Connector Other Key Features

• Available in 6 Shell Sizes and 27 Insert Arrangements
• Mixed Power and Signal Layouts
• Machined, Stamped & Formed, and PCB Contacts
• Lightweight, High-Strength, Impact Resistant, Thermoplastic Housing
• UV/Corrosion Resistant: Salt Spray Test 500 hours
• Colored Rings for Visual Identification Available
• Max Voltage: 500V / Max Amperage: 45A
• Wire Range: 10-28AWG
• Bayonet Coupling System
• IP68/IP69k in Mated Condition
• Thermoplastic UL94-VO Housings
