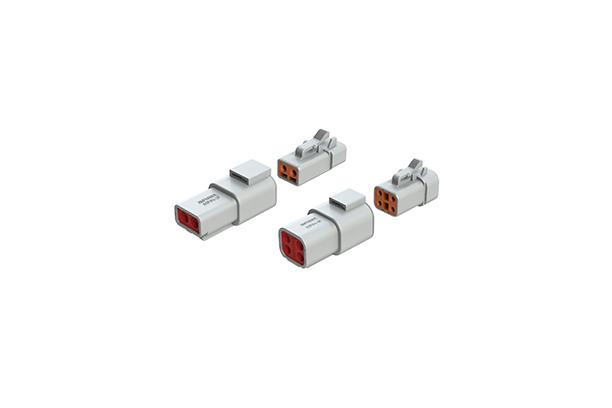

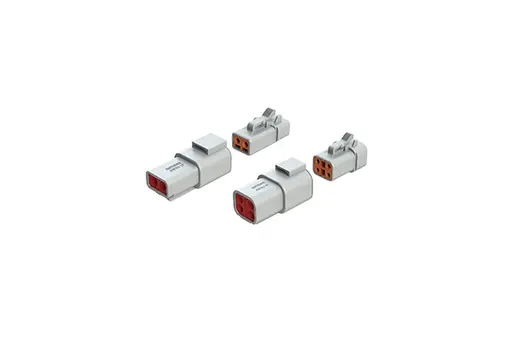

Amphenol Sine Systems ATP Series™ Connectors
Model Name
-
Series
Connectors
Data
-
Manufacturer information
provider logo
AMPHENOL

Interconnect Product Manufacturer, Electrical, Electronic, Fiber Optic Connectors, Coaxial Cable and more

Problem with product info?
Update request
Manufacturer
AMPHENOL
Brand
-
SKU
141568
Product Name
Amphenol Sine Systems ATP Series™ Connectors
Model Name
-
Size
-
Weight
-
Product Details

ENVIRONMENTALLY SEALED THERMOPLASTIC CONNECTORS

Amphenol Sine Systems ATP Series™ connectors are designed as an IP68/69K rated (mated), high-performance, cost-effective, thermoplastic solution with superior environmental seals, seal retention capabilities and are designed for use with 10-14AWG with size 12 contacts handling up to 25A. Available in BoardLock™, HYPERBUSS™, PanelMate™, StructurePlus™ and SR01/02 options. In addition, all of the ATP Series™ connectors have been developed to be completely compatible with all other existing standard products industry-wide.

  • 2, 4 and 6 positiona available
  • 10-14AWG, 25A, Size 12
  • Thermoplastic housing with integrated latch for mating
  • High temperature silicone seals provide superior sealing
  • Wedgelocks ensure proper contact alignment & retention
  • Compatible with existing standard products industry-wide
  • Applications: Marine, Heavy Equipment, Agricultural, Automotive, Alternative Energy
