IP69K RATED ISOBUS CONNECTOR, EXCELLENT FOR AGRICULTURAL EQUIPMENT

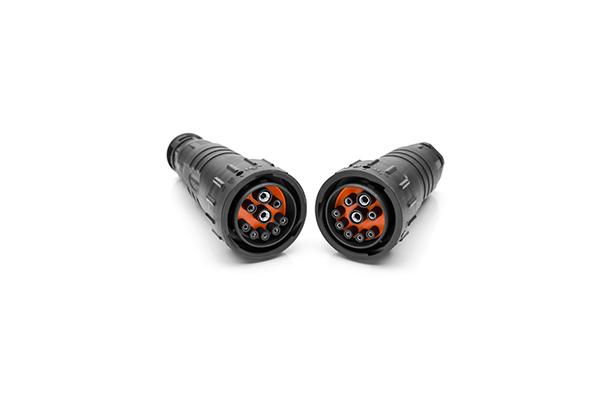

The Amphenol Sine Systems DuraMate™ AHDP ISOBUS 91 Series of environmentally-sealed, multi-pin, heavy duty, circular plastic (AHDP) plugs & receptacles provide an economical, quick-connect, circular bayonet locking system designed to meet ISO 11783 standards (for control and communications between tractors, implements and software) and withstand the challenges and complexities of harsh environment, off-road, agricultural applications.

• Available in Size 24, 9 Position
• One-to-one alternative for all HDP20 parts
• Compatible to other industry standard circular bayonet versions
• AHDP 91 Series Plugs have a jumper (bridged contacts) between Pin 4 & 5. (-P064 options have no jumper (bridged contacts) between Pin 4 & 5.)
• AHDP 91 Series Receptacles do not have a jumper (bridged contact)
• Options for up to 6AWG/16mm² power wires
• Full range of backshell options
