COMPACT CONNECTORS FOR HARSH ENVIRONMENTS

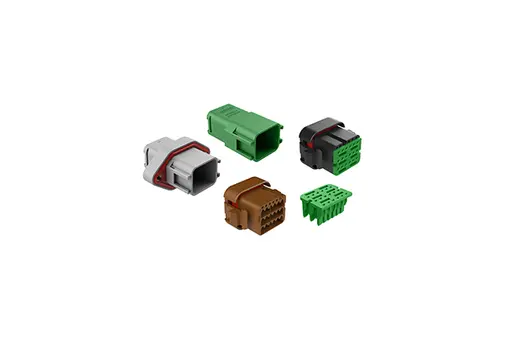

Amphenol Sine Systems ATV Series™ connectors further expands the proven reliability of the AT Series™ with a compact 18 position sealed flange design. The durable, thermoplastic housings feature built-in contact sealing to eliminate individual wire-sealing grommets, while an integral interfacial seal protects mated connectors. The ATV Series™, rated at IP67/IP69K (mated condition), is perfectly suited for on and off highway applications, marine, industrial, and agriculture markets in harsh environments.

• 18 position available
• 18 Position cavity arrangement
• Rectangular, thermoplastic housing
• Accepts contact size 16 (13A)
• 14-22AWG
• Flange Mount or In-line (Flangeless) Capability
• Integrated latch for mating
• Integrated wedgelock confirms contact alignment/retention
• Available in custom color options
• Applications: On/Off Highway, Marine, Industrial, and Agriculture Markets in Harsh Environments
