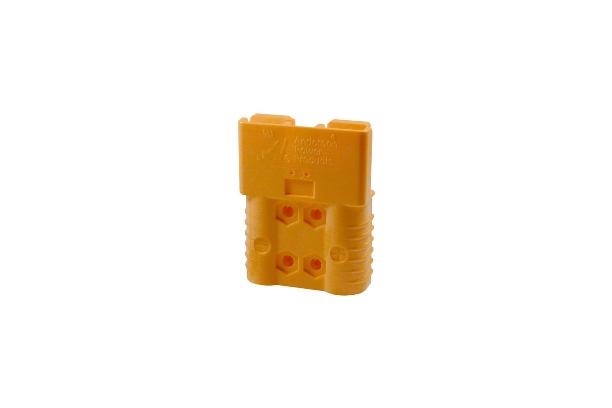

SBX® 175 MULTIPOLE CONNECTOR (UP TO 175 AMPS)

The innovative Anderson Power Products™ SBX® 175 connectors provide cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance.

Anderson Power Products™ 2 pole connector is available with a 175 amp rating, 600 Volts continuous AC or DC operation. There are Anderson Power Products™ SBX® 175 connectors for many applications and wire sizes, 1/0 or 35 mm.

Mechanical keys ensure that Anderson Power Products™ SBX® Multipole connectors will only mate with connectors of the same color. Different color housings are selected to identify voltages, thus preventing mismatching of the power supply system. These connectors are also molded from a rugged PC resin and are rated IP20 per IEC 60529.

Features and Benefits

• Touch safe interface minimizes potential contact with live circuits
• Up to 8 last mate / first break auxiliary’s
• Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
• Color-coded mechanical voltage keys
• Like all Multipole connectors, the SBX® offers an easy way to identify circuits and protect against cross mating

Features

• Mechanical Keyed Housings
• Auxiliary Contacts Kits
• Optional Mechanical Release

Benefits

• Prevents accidental mating of components operating at different voltage levels
• Provides ability to incorporate a secondary sensor control circuit
• Aids mating and unmating for high cycle battery charging

Specifications

* UL Rated for 65°C largest wire or cable size
** Contact us for higher temperature rated connector

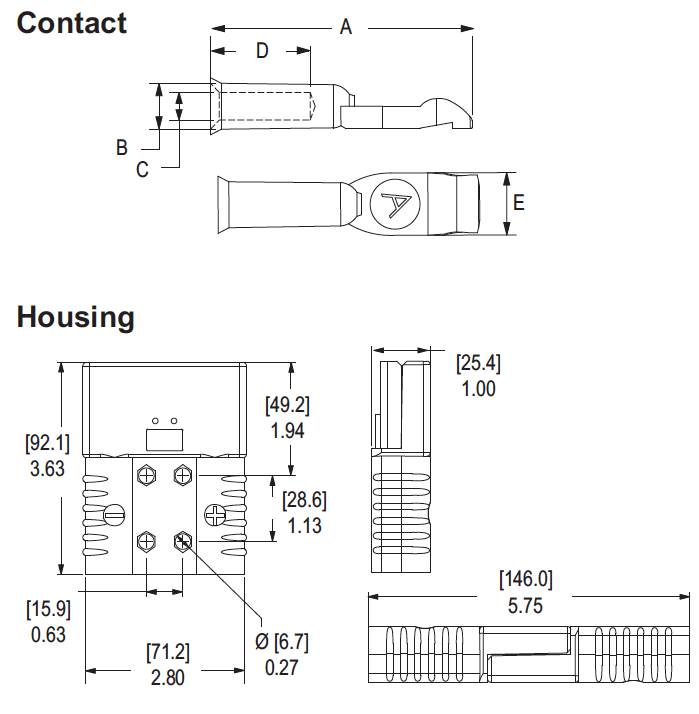

Mechanical Drawing
