BLINDMATE POWERPOLE® PAK CONNECTOR (UP TO 45 AMPS)

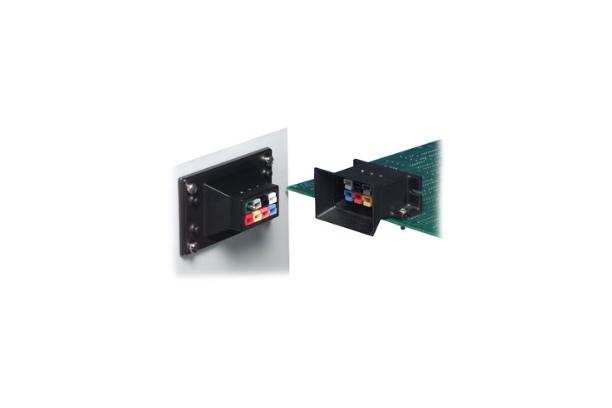

Anderson Power Products® (APP) now offers Powerpole® Pak Blindmate connectors for wire to printed circuit board applications. These Powerpole® Pak Blindmate connectors correct for up to .45" of misalignment.
The Powerpole® Pak Blindmate connector was a custom assembly for unique power requirements in the Communications and Uninterruptible Power Supply (UPS) markets. It can now be ordered as individual components enabling customers to customize these Powerpole® Pak Blindmate connectors for unique applications.
Features
- Positive latching
- Variety of contact sizes
- Integral strain relief
Benefits
- Provides security in applications where shock and/or vibration may be severe
- Enables flexibility in wiring sizes and allows customization
- Organizes individual wires and reduces risk of wire breakage
Specifications
* UL Rated for 65°C largest wire or cable size
** Both AC & DC Voltage
*** Contact us for higher temperature rated connectors
**** Based on 10 AWG
Mechanical Drawing
