Manufacturer
ASFLOW
Product Type
Machine
Brand
-
SKU
53507
Product Name

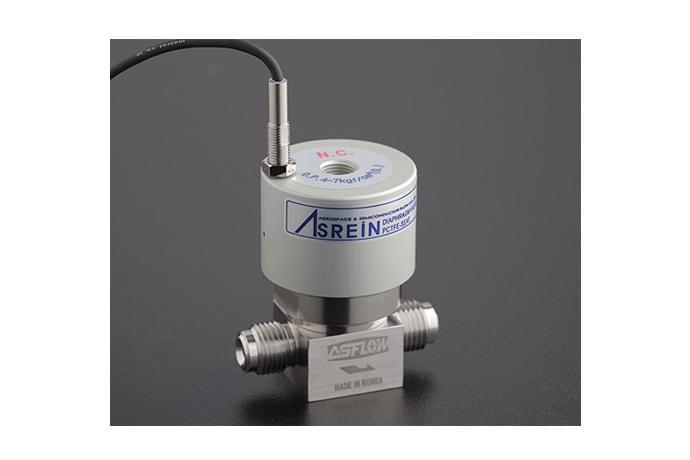

Switch Type Pneumatic Diaphragm Valve
Model Name
-
Size
-
Weight
-
Product Details
| PRODUCT | SIZE | CONNECTION | ACTUATION | GRADE | MATERIAL | ||||||||||||||
| NDV | Pneumatic Diaphragm Valve |
04 | 1/4″ | MV | Male | ACS | Normal Close Switch Type |
B | BA | 316LS | SUS316L Single melt | ||||||||
| FV | Female | E | EP | 316LD | SUS316L Double melt | ||||||||||||||
| LOK | Lok | 304 | SUS304 | ||||||||||||||||
| BW | Butt Weld | ||||||||||||||||||
| Product Dimension (mm) | |||||||||||||||||||
| Model | Connection | Size | A | B | C | D | E | F | G | H | |||||||||
 |
Male | 1/4″ | 57 | 28 | 60 | 11 | 42 | 25.4 | 28 | – | |||||||||
 |
Female | 1/4″ | 70.6 | 28 | 60 | 11 | 42 | 25.4 | 28 | – | |||||||||
 |
Lok | 1/4″ | 55 | 28 | 60 | 11 | 42 | 25.4 | 28 | – | |||||||||
 |
Butt Weld | 1/4″ | 54 | 28 | 60 | 11 | 42 | 25.4 | 28 | – | |||||||||
