product Image
Terminal_Block
Model Name
840K2B
Data
-
Manufacturer information
provider logo
BEE RYONG

Terminal electronic parts manufacturer, Terminal block, Connector, PCB, Assembly

Problem with product info?
Update request
Manufacturer
BEE RYONG
Brand
-
SKU
25437
Product Name
Terminal_Block
Model Name
840K2B
Size
-
Weight
-
Product Details

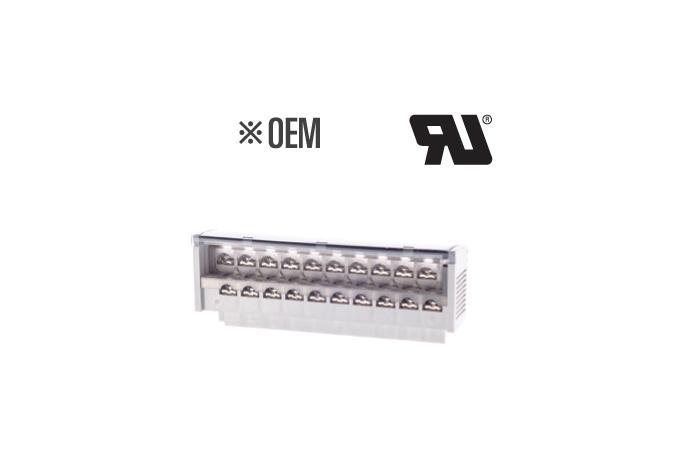

BEE RYONG Terminal_Block 840K2B

● Rating : 300V 10A

● Insulation Resistance : More Than 1000MΩ DC 500V

● Withstand Voltage : AC2000V Per Minute

● Wire Size / Range : AWG16~22

● Maximum Acceptable Temperature : -40°C ~ +85°C

BEE RYONG Terminal_Block 840K2B 1

No

Component Part

Material

Standard

Plated

Remark



NO

Component Part

Material

Standard

Plated

Remark

1

Frame

P.B.T.

UL94V-0

-

-



7

Coil Spring

SUS

SUS 304

-

t0.25

2

Terminal #1

PHOSPHOR BRONZE

C5210 t0.4

Au

-



8

Hexagonal Nut

SWCH10A

-

Ni

M3.5

3

Terminal #2

PHOSPHOR BRONZE

C5210 t0.4

Au

-



9

Cover

P.C.

201-15/141R71425

-

Half Clearness

4

Screw

SWCH10A





M3.5 * 7



10

Out Cover

P.C.

201-15/141R71425



NAT

5

Washer

SPCC



Ni

6.8 * 6.8



11

Cover Sheet

Paper

-

-

□16 * 87

6

Ass’y Screw

SWCH10A

-

Black Coloring

M3 * 9
