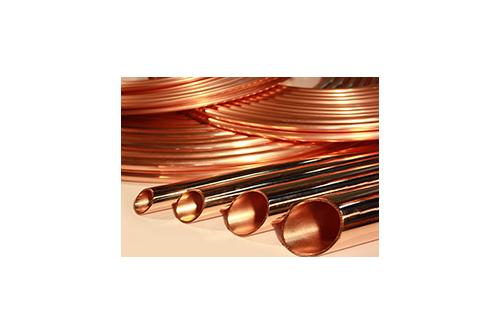

product Image
Copper Nickel(Cu-Ni) Pipe (ASME)
Model Name
-
Series
Pipe Division
View All
Data
-
Manufacturer information
provider logo
BO MYUNG METAL

Manufacturer of Copper and Copper Alloy Pipe, Fitting and flange

Problem with product info?
Update request
Manufacturer
BO MYUNG METAL
Brand
-
SKU
141069
Product Name
Copper Nickel(Cu-Ni) Pipe (ASME)
Model Name
-
Size
-
Weight
-
Product Details

Pipes – U.S. Standard

MATERIAL Cu-Ni 90/10, Cu-Ni 70/30, Seamless (1/8″∼12″), Seam Welded(14″ and Over)
According to ASME B36.19M, UNS C70600 (90/10), UNS C71600 (70/30)

Outside diameter of pipe Schedule 5S Schedule 10S
Wall thickness Theoretical weight Wall thickness Theoretical weight
Nominal Actual Actual Actual Actual
Inch Inch (mm) Inch mm LB / Ft Kg / m Inch mm LB / Ft Kg / m
1/8 0.405 10.29         0.049 1.24 0.19 0.28
1/4 0.540 13.72         0.065 1.65 0.33 0.49
3/8 0.675 17.15         0.065 1.65 0.42 0.63
1/2 0.840 21.34 0.065 1.65 0.54 0.80 0.083 2.11 0.67 1.00
3/4 1.050 26.67 0.065 1.65 0.69 1.03 0.083 2.11 0.86 1.28
1 1.315 33.40 0.065 1.65 0.87 1.30 0.109 2.77 1.40 2.09
1 1/4 1.660 42.16 0.065 1.65 1.11 1.65 0.109 2.77 1.81 2.70
1 1/2 1.900 48.27 0.065 1.65 1.28 1.91 0.109 2.77 2.09 3.11
2 2.375 60.32 0.065 1.65 1.61 2.40 0.109 2.77 2.64 3.93
2 1/2 2.875 73.03 0.083 2.11 2.48 3.69 0.120 3.05 3.53 5.26
3 3.500 88.90 0.083 2.11 3.03 4.51 0.120 3.05 4.33 6.45
3 1/2 4.000 101.60 0.083 2.11 3.48 5.18 0.120 3.05 4.97 7.40
4 4.500 114.30 0.083 2.11 3.92 5.84 0.120 3.05 5.61 8.36
5 5.563 141.30 0.109 2.77 6.36 9.47 0.134 3.40 7.77 11.57
6 6.625 168.30 0.109 2.77 7.60 11.32 0.134 3.40 9.29 13.84
8 8.625 219.10 0.109 2.77 9.93 14.79 0.148 3.76 13.40 19.96
10 10.750 273.05 0.134 3.40 15.19 22.63 0.165 4.19 18.65 27.78
12 12.750 323.90 0.156 3.96 20.98 31.25 0.180 4.57 24.17 36.00
Outside diameter of pipe Schedule 40S Schedule 80S
Wall thickness Theoretical weight Wall thickness Theoretical weight
Nominal Actual Actual Actual Actual
Inch Inch (mm) Inch mm LB / Ft Kg / m Inch mm LB / Ft Kg / m
1/8 0.405 10.29 0.068 1.73 0.24 0.37 0.095 2.41 0.31 0.47
1/4 0.540 13.72 0.088 2.24 0.42 0.63 0.119 3.02 0.54 0.80
3/8 0.675 17.15 0.091 2.31 0.57 0.84 0.126 3.20 0.74 1.10
1/2 0.840 21.34 0.109 2.77 0.85 1.27 0.147 3.73 1.09 1.62
3/4 1.050 26.67 0.113 2.87 1.13 1.69 0.154 3.91 1.47 2.20
1 1.315 33.40 0.133 3.38 1.68 2.50 0.179 4.55 2.17 3.24
1 1/4 1.660 42.16 0.140 3.56 2.27 3.39 0.191 4.85 3.00 4.47
1 1/2 1.900 48.27 0.145 3.68 2.72 4.05 0.200 5.08 3.63 5.41
2 2.375 60.32 0.154 3.91 3.65 5.44 0.218 5.54 5.02 7.48
2 1/2 2.875 73.03 0.203 5.16 5.79 8.63 0.276 7.01 7.66 11.41
3 3.500 88.90 0.216 5.49 7.58 11.29 0.300 7.62 10.25 15.27
3 1/2 4.000 101.60 0.226 5.74 9.11 13.57 0.318 8.08 12.51 18.63
4 4.500 114.30 0.237 6.02 10.79 16.07 0.337 8.56 14.98 22.32
5 5.563 141.30 0.258 6.55 14.62 21.77 0.375 9.53 20.78 30.97
6 6.625 168.30 0.280 7.11 18.97 28.26 0.432 10.97 28.57 42.56
8 8.625 219.10 0.322 8.18 28.55 42.55 0.500 12.70 43.39 64.64
10 10.750 273.05 0.365 9.27 40.48 60.31 0.500 12.70 54.74 96.01
12 12.750 323.90 0.375 9.53 49.56 73.88 0.500 12.70 65.42 132.08
More products
BO MYUNG METAL
Manufacturer of Copper and Copper Alloy Pipe, Fitting and flange
BO MYUNG METAL CO., LTD has been supplying various Copper & Copper-Alloys materials as a specialized manufacturer of Pipes, Fittings & Flanges to shipbuilding, fresh water facilities, plant, petrochemistry and various construction for over 20 years. Since established in 1994, we have been doing our best for customers satisfaction and value creation. Also, we have been improving our products through continuous R&D for competitive price and high quality. We, BO MYUNG METAL CO., LTD, will contribute to your business development by keeping up the R&D related to material and new technology, and taking social responsibilities. In addition, we will take a role in the center of metal industry for future new growth engine. We are always ready to serve you with all your Copper & Copper-Alloys metals needs. That can be of mutual benefit. It is sure BO MYUNG METAL CO., LTD will be an ideal partner.
