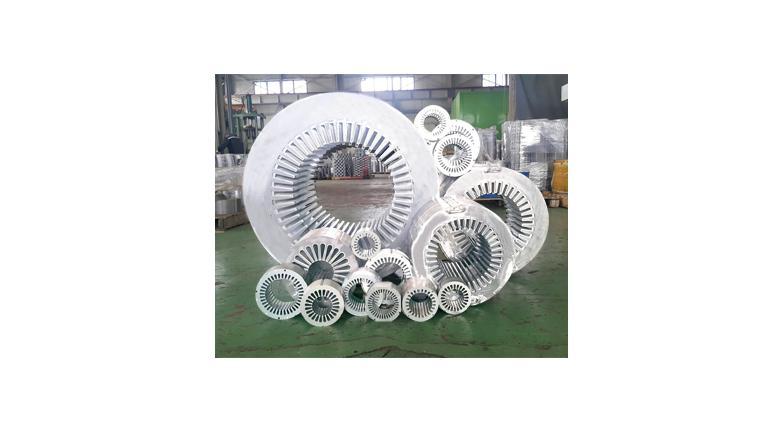

Stator Core
Model Name
-
Data
-
Manufacturer information
provider logo
CHUN IN

Electric motor manufacturer, Small electric motor, Large electric motor, Electric motor for Refrigerating & air-conditioning

Problem with product info?
Update request
Manufacturer
CHUN IN
Brand
-
SKU
58113
Product Name
Stator Core
Model Name
-
Size
-
Weight
-
Product Details

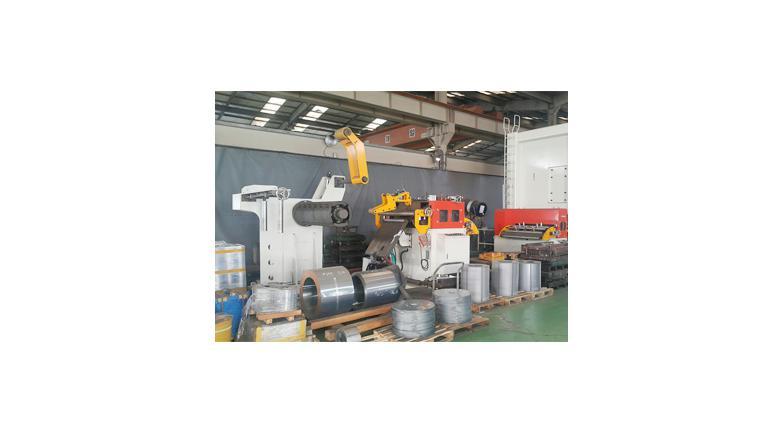

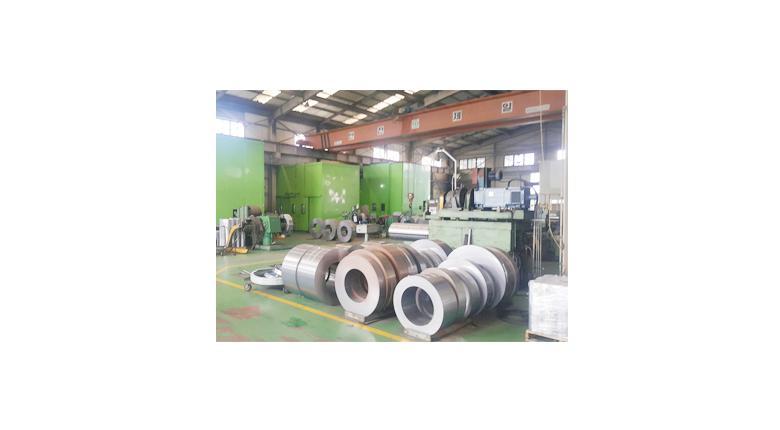

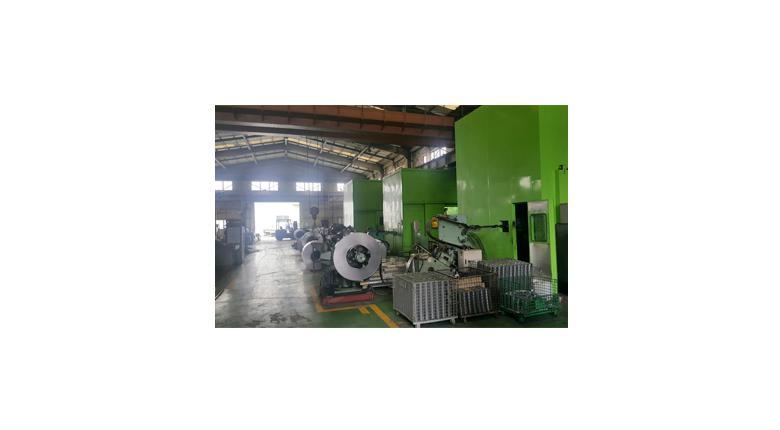

금형(고속프레스용) Progressive die with high speed press

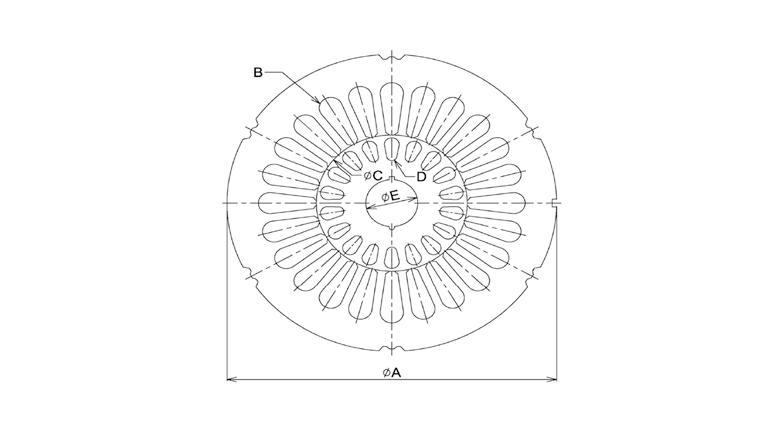

스테이터 | Stator 로타 | Rotor
외경(Φ)
Diameter
SLOT수
Slot Number
외경(Φ)
Diameter
SLOT수
Slot Number
축경(Φ)
Diameter
    80 12 26
92 22   16 27
94 24 50.5 34 12.15
95 24 50.5 34 10.12.15
97 16 50 20 15.17
115 24 70 34 17.5/20
120 24 68 33 12.15.17
120 36 77 40 17
125 24 70 18 22
130 24 83 22 24
138 24 68 34 20
139 24 69.5 34 15.17.20
139(140) 36 80 45 15.17.20.22
144 36 86 48 20
150 24 70 18 22
160 36 97 48 30
160 36 97 44 25.30
160 36 97 40 25.30
160 30 87 26 25.30
160 36 100 44 25.28
160 36 100 44 25.28
180 36 110 48 33
190 30 100 34 30.2
190 24 87 18 30
190 30 105 26 32
190 36 118 28 30.2
190 36 118 48 32
190 36 120.8 44 30
210 36 134 45 34/47
210 36 120 28 34
230 36 121 28 45
250 36 145 28 40.2
255 54 174 42 60
260 36 168 28 54
301 36 168 28 54
301 48 195 40 60
112 24 70 34 20
134 36 82 28 25
150 36 92 46 28
180 36 114 44 36
210 48 134 40 45/39.5
128 48 134 40 45/39.5
128 36 80 22 17
300 48 195 40 75
305 48 195 40 75
330 48 210 36 75
335 48 210 36 75



대형코어 (빈칸은 고객 스펙적용 / Empty slots are for Custumer Customization)
스테이터 | Stator 로타 | Rotor
외경(Φ)
Diameter
SLOT수
Slot Number
외경(Φ)
Diameter
SLOT수
Slot Number
축경(Φ)
Diameter
450 36 240 28 95
460 36 240 28 95
490 36 275 28 110
490 48 325 57 145
520 36 275 28 115
605 48 345 40 130/150
700 48 380 40 150
220       45
245       50
270       55
300       70
330       75
350       75
380       85
400       75
450       95
455
500       95
510
560       120
630       140
670       170
850       195
CHUN IN
Electric motor manufacturer, Small electric motor, Large electric motor, Electric motor for Refrigerating & air-conditioning
Established in 1975, Chunin Co., Ltd. is a specialized supplier equipped with systems for the design and manufacture of electric motors, ranging from small(1/4HP) to large(3,000HP)motors. On the basis of our superior design and manufacturing technology, we have earned recognition for extended period as one of the world's renowned suppliers of electric motors We supply products designed to satisfy the customer's specific requirements in the USA, Japan, Australia, China and India. We specialize in manufacturing custom-build electric motors for a range of purposes, including refrigerating & air-conditioning, safety-related nuclear power plants (Class - 1E), high-efficiency stainless-steel and pumps. Our management philosophy is"Customer satisfaction is our top priority. We supply our customers with the products and services of the very best quality." All our staff members work with this philosophy in mind. We promise to always do our best to meet and reward the expectations and patronage of our customers.
