This product is manufactured by
CLEANTEC
Manufacturer
CLEANTEC
Brand
-
SKU
131034
Product Name
Spherical Honing Machine
Model Name
Size
-
Weight
-
Product Details

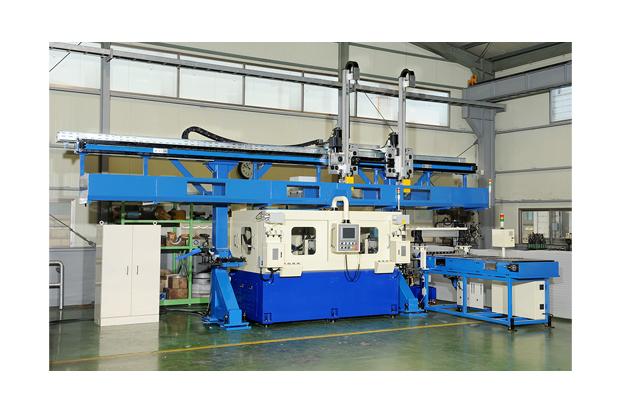

Spherical Honing Machine
Product features
- High accuracy,high efficiency to treat spherical shaped work pieces at low cost.
- Easy exchangeable automation with combination of automatic feeding exhaust facilities.
- Very excellent performance to hone outer spherical shapes like a ball-stupd,a plunger piston and a ball valve as well as r-grove shapes like a ball-joint,a rod-end bearing.,etc.
- Duplicate function through the exchange of a fixture and honing tool with one unit for both outer and inside process.
- Two spindle fitted machine enables two stage treatment including the rough honing and trimming honing and reduces a process time greatly.
|
CSH-08D |
CSH-08D |
Specification
| Spec.\Model | HS08-S | HS16-S | HS24-S | HS08-D | HS16-D | HS24-D | |
|---|---|---|---|---|---|---|---|
| Max.honing dia. | Spherical (mm) | Max. 80 | Max. 160 | Max. 240 | Max. 80 | Max. 160 | Max. 240 |
| R-groove (mm) | 20 ~ 80 | 50 ~ 160 | 120 ~ 240 | 20 ~ 80 | 50 ~ 160 | 120 ~ 240 | |
| No. of spindles | 1 | 2 | |||||
| Main Spindle speeds (rpm) | Max. 900 Variable speed | ||||||
| Stone Spindle speeds (rpm) | Max. 1800 Variable speed | ||||||
| Shaking speeds (cycle/min) | 28 | ||||||
| Shaking angle | Max. 25 | ||||||
| Sizing system | Timer (Option : electric micro meter) | ||||||
| Motor | Spindle drive (Kw) | 0.75 | 1.5 | 2.2 | 0.75 | 1.5 | 2.2 |
| Stone drive (Kw) | 0.4 | 0.75 | 0.75 | 0.4×2 | 0.75×2 | 0.75×2 | |
| Sharking (Kw) | 0.2 ~ 0.4 | ||||||
| Coolant pump (W) | 60 ~ 250 | ||||||
| Floor area (mm) | 1600×1800 | 1800×1800 | 2000×2000 | 2000×1800 | 2300×1800 | 2500×2000 | |
| Overall height (mm) | 1600 | 1800 | 2000 | 1600 | 1800 | 2000 | |
| Weight (kg) | 600 | 800 | 1000 | 900 | 1200 | 1500 | |
