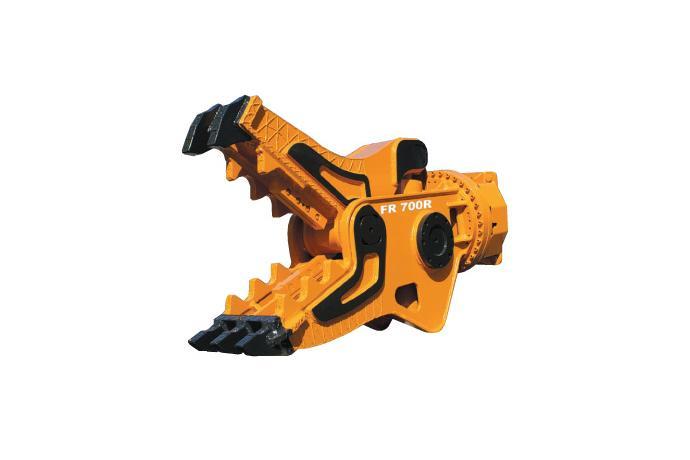

Description
ㆍShearing steel, Pulverizing, Crushing Concrete.
ㆍ360° Hydraulic Rotation System
ㆍAuto Clearance Control
ㆍReversible & Exchangeable Blade with 4edges.
ㆍSpeed up valve can be installed at option.
Spectification
ITEM/MODEL | DMC 20 | DMC 30 | ||
Suitable Carrier | ton | 18~26 | 27~36 | |
Operating Pressure | kg/㎠ | 300 | 320 | |
Oil Flow | lpm | 200~250 | 250~300 | |
Operating Weight | Crusher Jaw | kg | 1,650 | 2,630 |
Pulverzer Jaw | kg | 1,700 | 2,800 | |
Shear Jaw | kg | 1,700 | 2,800 | |
Overall Height | Crusher Jaw | mm | 2,200 | 2,700 |
Pulverzer Jaw | mm | 2,100 | 2,700 | |
Shear Jaw | mm | 2,100 | 2,650 | |
Jaw Opening | Crusher Jaw | mm | 900 | 1,100 |
Pulverzer Jaw | mm | 870 | 960 | |
Shear Jaw | mm | 503 | 602 | |
Jaw Depth | Crusher Jaw | mm | 760 | 926 |
Pulverzer Jaw | mm | 810 | 990 | |
Shear Jaw | mm | 550 | 717 | |
Cutting Force | ton | 225 | 335 | |
Crushing Force | Crusher Jaw | ton | 77 | 137 |
Pulverzer Jaw | ton | 77 | 137 | |
Shear Jaw | ton | 90 | 160 | |
Cutter Length | Crusher Jaw | mm | 180 | 180 |
Pulverzer Jaw | mm | 180 | 180 | |
Shear Jaw | mm | 353 | 585 | |
Hyd. Swivel Motor | Crusher Jaw | kg/㎠ | 160 | 160 |
Pulverzer Jaw | lpm | 15~60 | 15~60 | |
Shear Jaw | rpm | 10~18 | 10~18 |
Remark
Above specifications are subject to change without notice.
Hydraulic Motor Spectification
SHEARING CAPABILITY | DMC 20 | DMC 30 |
Round Bar | Φ35 | Φ45 |
Channer | 250×90×11 | 425×100×16 |
Angle | 200×200×11 | 300×300×16 |
H-Beam | 200×200×10 | 250×250×14 |
(Maximum) | (300×300×12) |
