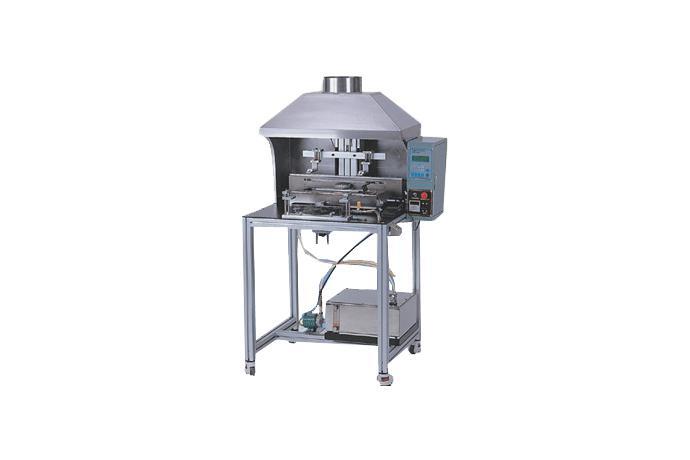

product Image
Automatic Power Trans Tester
Model Name
PT9907
Data
-
Manufacturer information
provider logo
DAE-A TECH

Electronic parts manufacturer, Winding machine, Transformer, Coil, Accessories and more

Problem with product info?
Update request
Manufacturer
DAE-A TECH
Brand
-
SKU
59517
Product Name
Automatic Power Trans Tester
Model Name
PT9907
Size
-
Weight
-
Product Details

* Features

AUTOMATIC POWER TRANS TESTER

This model is equipment for testing transformer of linear power-source. It is possible to judge sequentially this: non load primary current, secondary voltage and internal voltage of P-E.S, E-S, S-S.

(P:primary, S:secondary, E:earth)t.r


* Specifications

MODEL

PT9907

POWER

AC220V, 50/60Hz, 2kW

Test-Power

INT:0-240V (Variable by SLIDAC)
EXT:0-400V (Possible to input )
EXT:0-400V

Input Voltmeter

AC 400V

Input Current Meter

AC 199.9mA or 1.999A

Output Voltmeter

AC 19.99V : 2EA
AC 199.9V : 2EA

Resisting Pressure test

P-E.S, E-S, S-S

Judgement
Mrthod

자동

Dimension
(W*D*H)

430×530×285(mm)

Weight

40Kg

Other

내압시험기(PT-502)외장
DAE-A TECH
Electronic parts manufacturer, Winding machine, Transformer, Coil, Accessories and more
We are specialized to manufacture the production equipment of coils and transformers and have being supplied our equipment to the coil and  transformer producing factories not only in korea but also in the Asian countries. We, all the members of our company, are ready to serve you with the best quality products at the most competitive prices
