Manufacturer
DAEHA TECHWIN
Brand
-
SKU
66252
Product Name

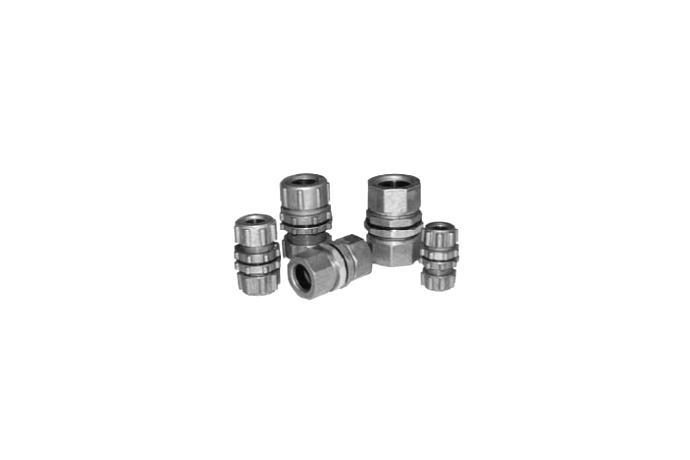

Bulkhead Connector
Model Name
BH-20, BH-25, BH-30, BH-40, BH-50
Size
-
Weight
-
Product Details
Daeha offers five models of connector(3/4”, 1”, 1&1/4”, 1&1/2”, 2”) Construction It is Pressure die-casted aluminum and is supplied complete with nuts, seals, and seal support cups.
Normally it is supplied with BUNA-N seals for temperatures up to 200℉(93℃) But special viton seals, if specified, can be supplied for temperatures up to 388℉(198℃)Each connector is supplied with a gasket to seal the fitting against the collector wall and this eliminates any need for costly welding.
(mm)
| Description | A | B | C | D | E | F | G | H | I | J |
| BH-20 | 116 | 18 | 43 | 42 | 49 | 45 | 28 | 35 | 80.5 | 64 |
| BH-25 | 142 | 29 | 53 | 48 | 57 | 54 | 35 | 44 | 94 | 78 |
| BH-30 | - | - | 61 | - | - | 55 | 44 | 44.5 | 93 | 74 |
| BH-40 | 150 | 19 | 70 | 60 | 80 | 63 | 50 | 53 | 113 | 97 |
| BH-50 | - | - | 81 | - | - | 65 | 61.5 | 53 | 112.5 | 97 |
