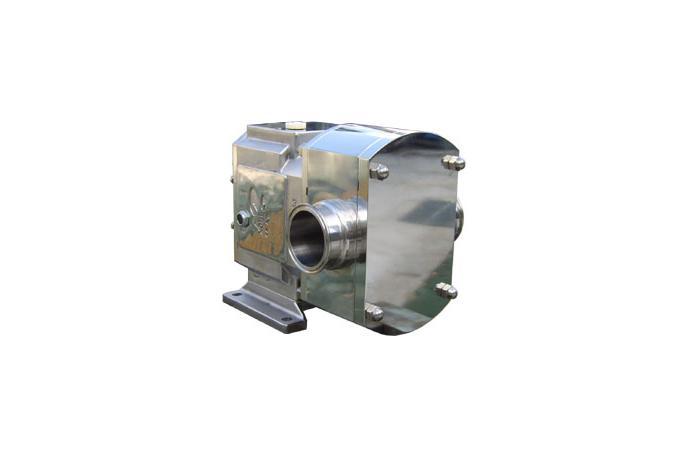

product Image
Lobe Flex (Sanitary)
Model Name
DS-L3SL
Series
Lobe Flex (Sanitary)
Data
Performance Data
Manufacturer information
provider logo
DAESUNG PUMP

Industrial pump manufacturer, Gear flex pump, Reducing motor, Food machine, Grain washing machine and more

Problem with product info?
Update request
Manufacturer
DAESUNG PUMP
Brand
-
SKU
137062
Product Name
Lobe Flex (Sanitary)
Model Name
DS-L3SL
Size
-
Weight
-
Product Details

- Displacement : 1540 cc/rev.

- Pressure : Max. 30 Bar

- Viscosity : Max. 1,000,000 cp

- Temperature : Max. 200 ℃



Dimensions

A: 180 mm, B : 210mm, C: 320mm, D: 115mm, E: 115mm, F: 57mm, G: 86mm, H: 200mm, I-1: 48mm, I-2: 224mm, J: 70mm, K: 52mm, L-1: 443mm, L-2: 619mm, M: 373mm, N: 16x12, O: 265mm, Diameter for 4 Holes of Base: 17mm



적용 분야 : 음료, 유제품, 제약, 장류 등

DAESUNG PUMP
Industrial pump manufacturer, Gear flex pump, Reducing motor, Food machine, Grain washing machine and more
Since Daesung Pump was founded in 1979, we have made a constant effort to meet the specifications required by our customers to fulfill their needs. We believe that customers’ trust, loyalty, and encouragement have driven our consistent growth over the past three decades. Our manufacturing flexibility meets customer’s application needs by providing the wide range of models and options, as well as customized solutions for the special applications, and the accumulation of industrial know-how for three decades comes into the new products with better mechanism. We are not complacently satisfied with today’s achievement and continue to move forward with engineering innovations and a challenging spirit. By providing continuous innovation through research and development, we will continue to provide our customers with best solutions for reliable performances and high lifetime value.
