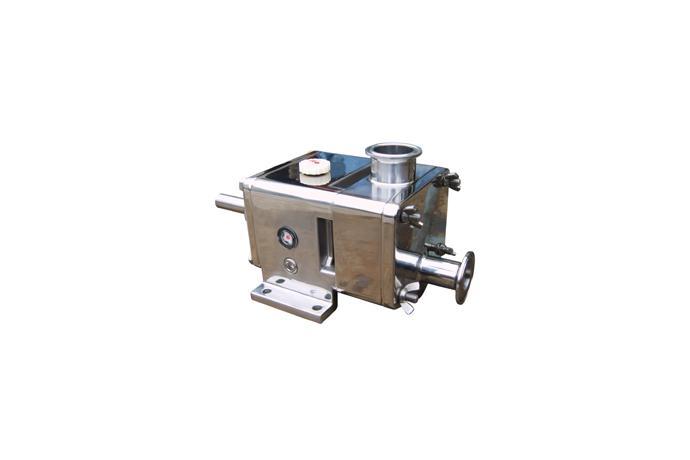

product Image
소형정량 펌프 (위생용)
Model Name
DS-L1SM18
Series
소형정량 펌프 (위생용)
Data
Performance Curve
Manufacturer information
provider logo
DAESUNG PUMP

Industrial pump manufacturer, Gear flex pump, Reducing motor, Food machine, Grain washing machine and more

Problem with product info?
Update request
Manufacturer
DAESUNG PUMP
Brand
-
SKU
137067
Product Name
소형정량 펌프 (위생용)
Model Name
DS-L1SM18
Size
-
Weight
-
Product Details

Displacement : 18 cc/rev.

Pressure : Max. 1 Bar

Viscosity : Max. 10,000 cp

Temperature : Max. 100 ℃



Dimensions

MODEL Type
A B C D E F G H

I

J K L M N 4-Φ
DS-L1SM09 A 60 120 150 - 108.5 27 30.5 84.5 65.5 40 14 223 149.5 5×5 9
DS-L1SM18 I 60 150 171.5 - 69 27 30.5 - 65.5 40 14 223 144.5 5×5 9
  L 60 150 171.5 40 69 27 30.5 33.5 65.5 40 14 249 144.5 5×5 9
  AL 60 120 150 40 108.5 27 30.5 84.5 65.5 40 14 249 149.5 5×5 9
DS-L1.5SM30 A 60 120 150 - 108.5 33 38.5 84.5 65.5 40 14 237 149.5 5×5 9
DS-L1.5SM50 I 60 150 171.5 - 69 33 38.5 - 65.5 40 14 237 144.5 5×5 9
  L 60 150 171.5 26 69 33 38.5 33.5 65.5 40 14 263 144.5 5×5 9
  AL 60 120 150 26 108.5 33 38.5 84.5 65.5 40 14 263 149.5 5×5 9
(units:mm)



적용분야 : 음료, 유제품, 제약, 장류 등
