product Image

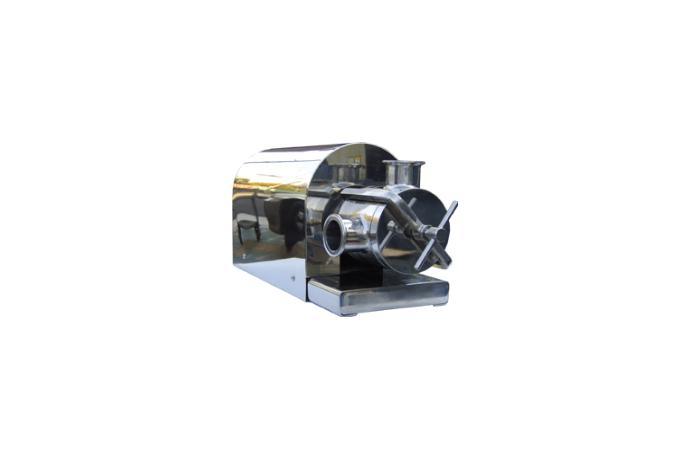

Mono Flex (Sanitary)
Model Name
DS-R4S
Series
Mono Flex (Sanitary)
Data
Performance Curve
Manufacturer information
provider logo
DAESUNG PUMP

Industrial pump manufacturer, Gear flex pump, Reducing motor, Food machine, Grain washing machine and more

Problem with product info?
Update request
Manufacturer
DAESUNG PUMP
Brand
-
SKU
137100
Product Name
Mono Flex (Sanitary)
Model Name
DS-R4S
Size
-
Weight
-
Product Details

- Displacement : 928 cc/rev.

- Pressure : Max. 5.5 Bar

- Viscosity : Max. 5,000 cp

- Temperature : Max. 120 ℃



Dimensions

A: 150mm, B: 55mm, C: 120mm, D: 123mm, E: 39.5mm, F: 38mm, G: 160mm, H: 132mm, I: 12x8, J: 10mm, K: 160mm, L: 490mm, M: 92.5mm, N: 180mm, Inlet & Outlet Dia.: 4S, Diameter for 4 Holes of Base: 11mm



Applications : Dairy, Beverages, Jam, Paste, etc..
