product Image

TOP

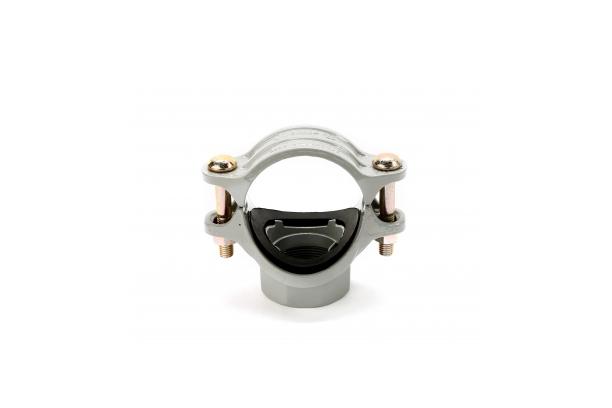

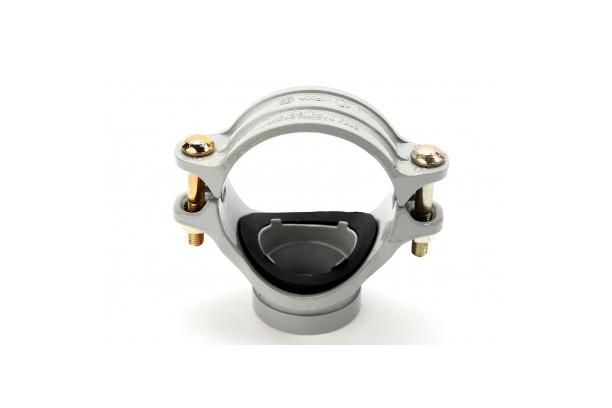

Mechanical Tee Grooved Outlet
Model Name
GP-301
Series
GP-Joint (Couple ring)
Data
-
Manufacturer information
provider logo
Daseong TechStainless pipe material manufacturer, Crimping tool and more
Problem with product info?
Update request
Manufacturer
Daseong Tech
Brand
-
SKU
122418
Product Name
Mechanical Tee Grooved Outlet
Model Name
GP-301
Size
-
Weight
-
Product Details


Product Specifications

Nominal sizeODWork pressureHole SizeW,Y,Z,VBolts SizeApprox.Wt.Ea.
mm(Inch)mmPsi(kgf/cm2)mmmmmmkg
50*25(2*1)60.5*34.0300(21)38.136,139,69,67m12*601
50*32(2*1¼)60.5*42.7300(21)44.536,139,75,67m12*601.1
50*40(2*1½)60.5*48.6300(21)44.536,139,83,68m12*601.2
65*25(2½*1)76.3*34.0300(21)38.145,156,69,76m12*751.1
65x32(2½x1¼)76.3x42.7300(21)44.545,156,75,76M12x751.2
65x40(2½x1½ )76.3x48.6300(21)50.845 156 83 76M12x751.3
80x25(3x1 )89.1x34.0300(21)38.151 166 69 82M12x751.2
80x32(3x1¼ )89.1x42.7300(21)44.551 166 75 82M12x751.3
80x40(3x1½ )89.1x48.6300(21)50.851 166 83 82M12x751.4
80x50(3x2 )89.1x60.3300(21)63.551 166 95 82M12x751.5
100x25(4x1 )114.3x34.0300(21)38.164 191 69 96M12x751.4
100x32(4x1¼ )114.3x42.7300(21)44.564 191 75 96M12x751.5
100x40(4x1½ )114.3x48.6300(21)50.864 191 83 96M12x751.6
100x50(4x2 )114.3x60.5300(21)63.564 191 95 96M12x751.7
100x65(4x2½ )114.3x76.3300(21)69.964 191 102 97M12x751.9
100x80(4x3 )114.3x89.1300(21)88.964 191 122 97M12x752
125x25(5x1)139.8x34.0300(21)38.178 234 69 110M16x902
125x32(5x¼ )139.8x42.7300(21)44.578 234 75 110M16x902.1
125x40(5x1½ )139.8x48.6300(21)50.878 234 83 110M16x902.2
125x50(5x2 )139.8x60.5300(21)63.578 234 95 110M16x902.4
125x65(5x2½)139.8x76.3300(21)69.978 234 102 110M16x902.7
125x80(5x3)139.8x89.1300(21)88.978 234 122 110M16x902.9
150x25(6x1)165.2x34.0300(21)38.179 235 69 124M16x902.3
150x32(6x1¼ )165.2x42.7300(21)44.591 258 75 124M16x902.3
150x40(6x1½ )165.2x48.6300(21)50.891 258 83 124M16x902.4
150x50(6x2 )165.2x60.5300(21)63.591 258 95 124M16x902.6
150x65(6x2½)165.2x76.3300(21)69.991 258 102 124M16x902.9
150x80(6x3 )165.2x89.1300(21)88.991 258 122 124M16x903.2
150x100(6x4)165.2x114.3300(21)114.391 258 146 126M16x903.3
200x25(8x1 )216.3x34.0300(21)38.1120 330 69 152M20x1003.5
200x32(8x1¼ )216.3x42.7300(21)44.5120 330 75 152M20x1003.6
200x40(8x1½ )216.3x48.6300(21)50.8120 330 83 152M20x1003.8
200x50(8x2 )216.3x60.5300(21)63.5120 330 95 152M20x1004
200x65(8x2½ )216.3x76.3300(21)69.9120 330 102 152M20x1004.6
200x80(8x3 )216.3x89.1300(21)88.9120 330 122 152M20x1004.6
200x100(8x4 )216.3x114.3300(21)114.3120 330 144 154M20x1005
