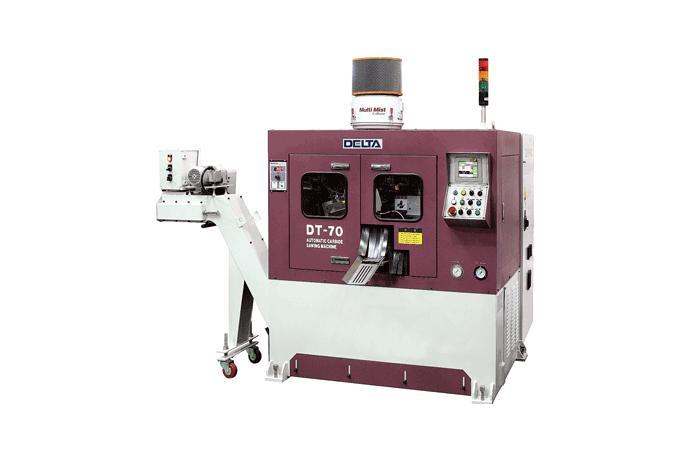

DT-70 + Auto Feeder
Features
- Fully automatic NC control and touch screen type
- Extension of saw blade life by using high precision reducer
- Precise cutting length by servo motor
- Ten cut off lengths programmable
- Display of error types and their solutions
- Head moving by ball screw
- Suitable for cold forging work
- Material size auto measuring
- Motor driven chip brush unit
- Sawhead servo feeding
Standard Accessaries
- Auto feeder(6M)
- Screw typed automatic chip conveyor
Optional Accsessaries
- Steel belt typed automatic chip conveyor
- Mist cleaner
- Material unloading device
Specifications
MODEL |
DT-70 |
|
Operating Method |
NC System & Touch Screen |
|
Saw Blade |
Ø285×2.0T |
|
Cutting Capacity |
Ø15~70 |
|
Max. feed Stroke |
670mm |
|
Min. Remnants |
30mm |
|
Saw Blad Speed |
40~160rpm |
|
Motor |
Drive |
7.5kw |
Hydraulic System |
2.2kw |
|
Feed System |
A/C Servo Motor |
|
Saw Cooling |
Compressed Air and Misting Oil | |
Weight |
3000kg |
|
Floor Space (W×H×L) |
1900×1510×6250mm |
