product Image
CO2 Purification System
Model Name
CDPS Series
Series
CO2 Refiner
Data
-
Manufacturer information
provider logo
DHY

Air Dryer Manufacturer, Adsorption Type, Freeze Type Dryers and more

Problem with product info?
Update request
Manufacturer
DHY
Brand
-
SKU
139648
Product Name
CO2 Purification System
Model Name
CDPS Series
Size
-
Weight
-
Product Details

CO2 정제 에어드라이어

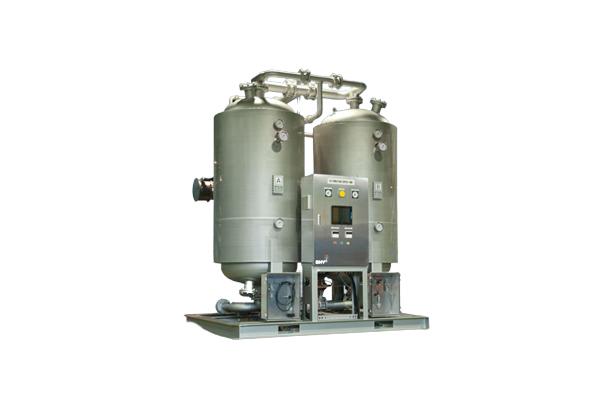

CO2 Purification System
CDPS 시리즈는 사용자의 환경에 맞추어 사양을 결정하는 주문 제작품으로써, 공기압축기에서 토출된 공기 중 CO2의 농도를 낮추어주는 에어드라이어입니다.(5ppm 이하의 성능 보장)

자체 개발한 Micom Controller는 노점 운전과 정전 보상 기능을 통해 운전비 절감과 유지 보수의 편의성을 극대화합니다.
CDPS 시리즈는 다년간 축적한 데이터를 바탕으로 고객 편의적 구조와 신뢰성이 확보된 부품만을 적용하였으며, 히터의 과열을 최소화하도록 설계(DOH 시스템) 하였습니다.

제품 특징

※ 전 모델 한국산업안전보건공단(KOSHA)의 설계 및 성능 검사품

- 표준 전원 사양 : 3Ph / 220V, 380V, 480V / 60Hz
- 사양조건 : 입구압력 7.0 ㎏f/㎠(최대 압력 9.9㎏f/㎠), CO2 5ppm(Max.), 노점 -60℃(ATM) 기준
- 공급 AIR 노점 ‧ 압력에 따라 흡착제의 종류와 용량 및 Heater의 용량이 변경됨
- 제품사양은 품질 향상을 위하여 사전 예고 없이 변경될 수 있음
