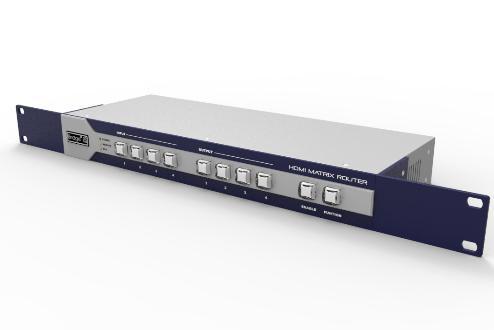

Bridge RS 4x4 is supporting 4x4 HDMI input/output of video as "Routing Switcher". A this model recognizes Format automatically, and is converted.,An user can fix output format. It's equipped with the Multi View function. And RCP,Preset,button Lock function for the convenience of the user.
Key Features
• HDMI 4 Input ( Up to 1080P Full-HD )
• HDMI 4 Output ( Up to 1080P Full-HD )
• Supports HDMI v1.3
• Output Format Fixed Mode
• Dip-Switch Configuration
• RCP & Ethernet remote configuration
• 12V 2A DC Power supply
• Supports HDMI formats
• SD Format : 525/29.97(NTSC), 66625/25(PAL), 480P, 576P
• HD Format : 720P(50/59.94/60)
1080i(50/59.94/60)
1080P(24/25/30/sf24/50/59.94/60)
Physical
Dimension (W x H x D) : 483 x 157 x 44 (mm)
Weight : 990g
Power Level :+12 VDC
Power Consumption : 13 Watts
Operating Temperature : -20℃ ~ 70℃
Humidity : 0 to 95% RH, non-condensing
Bridge RS 8x8 has HDMI Routing Switcher. eight signal input and eight
signal output. Maximum 1080P Full HD signal and HD, SD signal is input receive signal.
Also, out format fixed mode output of the four modes.
Key Features
• HDMI 8 Input ( Up to 1080P Full-HD )
• HDMI 8 Output ( Up to 1080P Full-HD )
• Supports HDMI v1.3
• Output Format Fixed Mode
• Dip-Switch Configuration
• RCP & Ethernet remote configuration
• 12V 5A DC Power supply
• Supports HDMI formats
• SD Format : 525/29.97(NTSC), 66625/25(PAL), 480P, 576P
• HD Format : 720P(50/59.94/60)
1080i(50/59.94/60)
1080P(24/25/30/sf24/50/59.94/60)
Physical
Dimension (W x H x D) : 483 x 185 x 44 (mm)
Weight : 1.75Kg
Power Level :+12 VDC
Power Consumption : Max: 45 Watts
Operating Temperature : -10℃ ~ 50℃
Humidity : 0 to 95% RH, non-condensing
Bridge RS 8x4 is supporting 8x4 SDI video input/output and 1 of HDMI output as "Routing Switcher". A this model recognizes SD,HD and 3Gb/s SDI signal automatically, is converted and changes Reclocking output, and a vertical sync of Reference will be, and is switched. And RCP,Preset Set is possessing the button Lock function for the convenience of the user.
Key Features
• Support SMPTE 292M, SMPTE 344M, SMPTE 259M, SMPTE 424M
• Re-clocking
• Multi-Rate SDI (143M, 177M, 270M, 340M, 540M, 1.485G, 1.485/1.001G, 2.97G)
• 3G/HD/SD-SDI 8 in x 4 out
• 1 HDMI Output.
• Auto equalizing (HD grade : compensate for up to 100m, SD : up to 300m of Belden 1694 Cable )
• RS-422 deck control ports (RJ45)
• DC12V 3.33A Power supply included
Connections
SDI Video Input_SD/HD-SDI, 3Gb/s SDI and ASI. X8 (BNC)
SDI Video Output_SD/HD-SDI, 3Gb/s SDI and ASI with SDI re-clocking. X4 (BNC)
HDMI OUTPUT_HDMI OUT 1EA
Remote Control_RS-422 (RJ45)
Reference Input_B.B , TRI x1 (BNC)
NET_TCP/IP (RJ45)
Electrical
Voltage_90 ~ 240V AC 50/60Hz
Power Dissipation_< 28W(12V DC, 3.33A)
Temperature_0 ~ 40˚C
Physical
Size_330mm x 40mm x 110mm(W x H x D)
Weight_1.55Kg
Standards
SD Format Support_NTSC(480i59.94) and PAL(576i50).
HD Format Support_720p(60/59.94/50)
1080i(60/59.94/50)
1080P(30/29.97/25/24/23.98)
1080p(60/59.94)3G
SDI Compliance_SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B
SDI Video Sampling_4:2:2 and 4:4:4.
SDI Video Rates_SDI video connections are switchable between standard definition, high definition and 2K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD SDI.
SDI Auto Switching_Automatically selects between SD-SDI, HD-SDI, 3 Gb/s SDI and DVB-ASI on each input so that each input can be running a different television standard.
As a Broadcast class (SMPTE standard) routing switcher, 16X16 will have a 16x16 SDI video input and output Bridge RS 16x16. Is switching automatically recognizes SD, HD, and 3G SDI signal, this model will be switched Reclocking output and dual power, and Vertical Sync synchronization of the Reference when switching. In addition, (control from a PC RS-422 communication) APC function, RCP, Preset Set, has a button lock function for the user's convenience.
Key Features
• 16X16 / 8X8 / 8X4 SDI matrix
• HD/SD/ASI input 16 (8) (4)EA (SD/HD/3G)
• Monitoring HDMI out 1EA (Only 8x4)
• Front Status LED
• Remote controller via RS422 port
• Support Network control & Monitoring
• Network EMS Support via Livenet
• 12V 3A DC Power supply (Dual)
• Support multi-rate SDI formats
• NTSC (480i 59.94), PAL (576i 50)720p(60/59.94/50)
1080i (60/59.94/50) 1080p(30/29.97/25/24/23.98)
1080p (60/59.94) 3G
As a Broadcast class (SMPTE standard) routing switcher, 8X8 will have a 8x8 SDI video input and output Bridge RS 8x8. Is switching automatically recognizes SD, HD, and 3G SDI signal, this model will be switched Reclocking output and dual power, and Vertical Sync synchronization of the Reference when switching. In addition, (control from a PC RS-422 communication) APC function, RCP, Preset Set, has a button lock function for the user's convenience.
Key Features
• HD/SD SDI Input
• Network control APC
• Reclock SDI output
• Dipswitch Configuration
• State LED expression
• 12V 3A DC Power supply(Dual)
