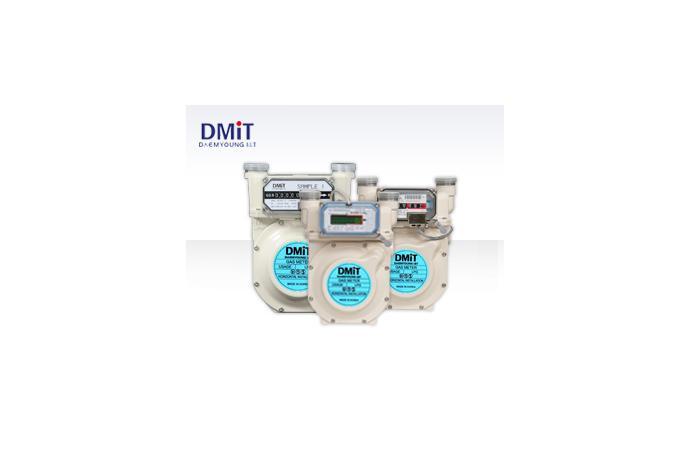

product Image
Domestic Diaphragm
Model Name
-
Data
-
Manufacturer information
provider logo
DMIT

Weighing equipment manufacturer, Gas meter, Water meter, Calorimeter

Problem with product info?
Update request
Manufacturer
DMIT
Brand
-
SKU
51605
Product Name
Domestic Diaphragm
Model Name
-
Size
-
Weight
-
Product Details

DMIT Domestic Diaphragm

  KG2 KG3S G1.6 G2.5 G4.0 G6.0 A G6.0 B
Max Capacity(m³/h) 2.5 2.5 2.5 4 6 10
Min Capacuty(m³/h) 0.016 0.016 0.016 0.025 0.04 0.06
Cyclic volume(L/rev) 0.4 0.78 1 1 1.2 2
Max operating Pressure(kPa) 50
Max Counter(m³/h) 9999.999 99999.999
Min Counter(L) 0.2
Weight(Kg) 1.5 1.6 1.6 1.6 2 2.8 3.0
Accuracy Qmin≤Q<0.1Qmax ±3.0
0.1Qmax≤Q≤Qmax ±1.5
Temperature °C -20 ~ +50
Connecting pipe(UNION) 15mm PT1/2” 15mm PT1/2" 20mm PT3/4" 25mm PT 1"



  KG2 KG3S G1.6 G2.5 G4.0 G6.0 A G6.0 B
(mm) Height (H) 197 214 221 221 230.5 279.5
Width (W) 128 164 164 164 165 171.91
Center (C) 100 100 130 130 130 130 250
Depth (D1) 44 52 55 55 54 61
Depth (D2) 110 130 131 131 134.5 148
Weighing equipment manufacturer, Gas meter, Water meter, Calorimeter
“DMIT Korea (Dae Myoung Instrument Technology, Inc.) has engaged in distributing gas meter and water meter including heat meter. We focus on customer`s satisfaction and value, based on our company motto, creativity, nationality and implementation. These things had played a key role to lead our firm to one of the well-known companies in our main filed of gas meter as well as water meter business including ultrasonic and remote reading systems. DMIT employees are continuously striving for self-improvement and enhanced sales` capabilities. We are challenging the future of the measuring equipment field with professional experience and knowledge with a progressive spirit, developed by continuous self-development and enhanced capability. As a reputed distributor of gas, water, heat meter including remote reading systems in Korea, DMIT has satisfied and served customers by providing high quality products and valuable international market information in the area.”
