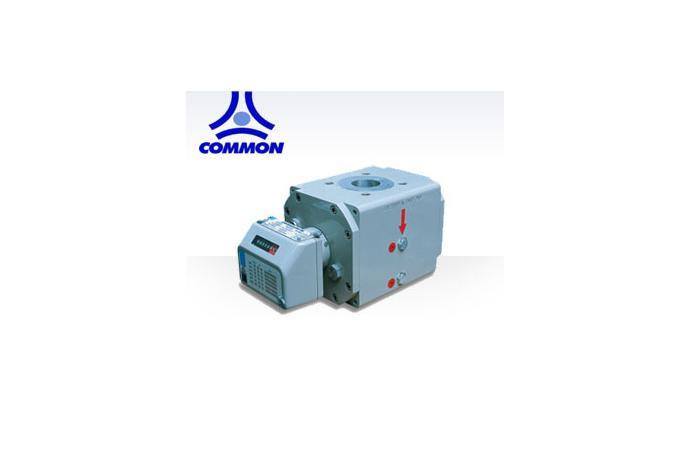

G16 | G25 | G40 | G65 | G100 | G160 | G250 | G400 | |
DN (mm) | 50 | 50/80 | 80 | 100 | ||||
Pressure( Bar ) | 16 | |||||||
Qmin m³/h | 0.3 | 0.3 | 0.4 | 0.6 | 1.0 | 1.6 | 2.5 | 4.0 |
Qmax m³/h | 25 | 40 | 65 | 100 | 160 | 250 | 400 | 650 |
T.D.R | 80 : 1 | 160 : 1 | ||||||
Error Qmax - QT | +/- 1% | |||||||
Qt - QMIN | +/- 2.0% | |||||||
Gas | LNG, LPG | |||||||
LF Pulser | Basically settled | |||||||
HF | OPTION | |||||||
ROTOR materials | Aluminium (AI) | |||||||
BODY materials | Aluminium (AI) | |||||||
0DN | ||||||||
Approval | OIML, PTB, EEC, ISO, DVGW | |||||||
Feature | Double Body Type, Easy to maintain, Easy to put an oil |
DN | G-Size | A | B | L | K | N | Weight | |
MM | mm | mm | mm | mm | mm | AI | ||
40 | G16,25 | 165 | 171 | 277 | 110 | 4 | 10 | - |
G40 | 184 | 171 | 296 | 110 | 4 | 12 | - | |
50 | G40 | 184 | 171 | 296 | 125 | 4 | 12 | - |
G65 | 225 | 171 | 337 | 125 | 4 | 14 | 25 | |
80 | G65 | 225 | 171 | 337 | 160 | 8 | 14 | 25 |
G100,G65 | 295 | 171 | 407 | 160 | 8 | 19 | 31 | |
G100 | 249 | 240 | 356 | 160 | 8 | 25 | 26 | |
G160 | 314 | 240 | 421 | 160 | 8 | 31 | 68 | |
100 | G250,G400 | 439 | 240 | 546 | 160 | 8 | 42 | 92 |
