This product is manufactured by
DONG IL BRAZING
Manufacturer information

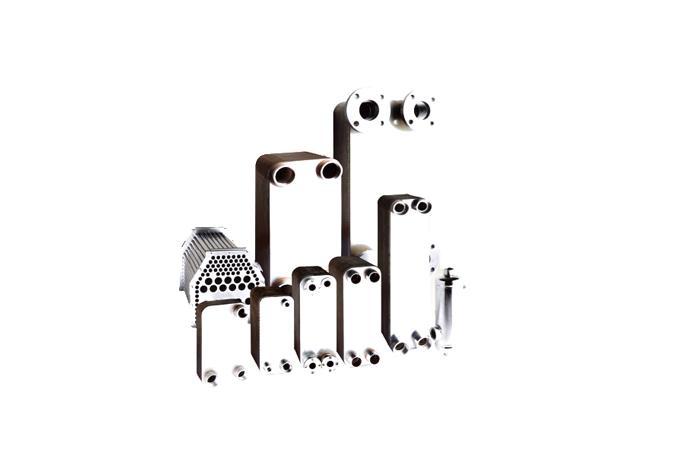

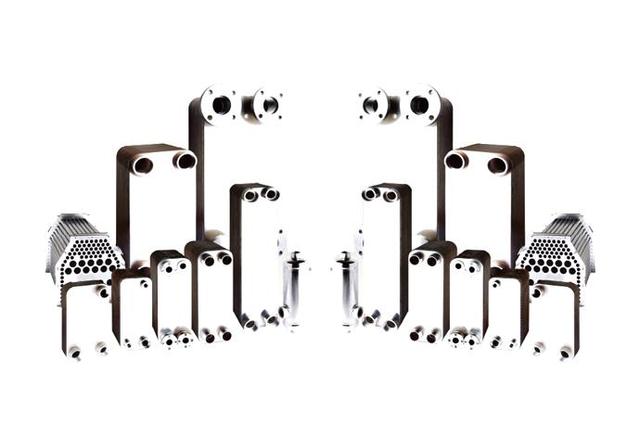

DONG IL BRAZINGBrazing platen heat exchanger, Stainless steel hot water distributor, Nickel brazing heat exchanger
Problem with product info?
Update request
Manufacturer
DONG IL BRAZING
Brand
-
SKU
32078
Product Name
For Condenser
Model Name
-
Size
-
Weight
-
Product Details
■For Condenser,Material:STS304or316L
| Model | 용량 | 규격 | 전열면적 | 접속구경 | |
|---|---|---|---|---|---|
| HP | mm | ㎡ | 냉매관(A) | 수배관(PT) | |
| DIC193-21F | 0.5 | 193×83×48 | 0.267 | ½" | ½" |
| DIC285-17F | 1 | 285×105×43.3 | 0.395 | 1⅛" | 1" |
| DIC328-15-H-F | 328×98×46.1 | 0.432 | |||
| DIC311-13-H-F | 311×125×41.5 | 0.444 | |||
| DIC285-35F | 3 | 285×105×74.8 | 0.869 | 1⅛" | 1" |
| DIC328-29-H-F | 328×98×77.5 | 0.871 | |||
| DIC311-25-H-F | 311×125×68.5 | 0.874 | |||
| DIC503-31F | 5 | 503×123×68.5 | 1.578 | 1⅛" | 1¼" |
| DIC503-35F | 7.5 | 503×123×91 | 2.341 | 1⅛" | 1¼" |
| DIC770-25F | 10 | 535×225×58 | 2.436 | 1⅛" / 1⅝" | 2" |
| DIC770-29F | 12.5 | 535×225×68.2 | 2.86 | 1⅛" / 1⅝" | 2" |
| DIC770-35F | 15 | 535×225×78.4 | 3.495 | 1⅛" / 1⅝" | 2" |
| DIC770-43F | 20 | 535×225×98.8 | 4.343 | 1⅛" / 1⅝" | 2" |
| DIC770-63F | 30 | 535×225×139.6 | 6.461 | 1⅛" / 1⅝" | 2" |
| DIC770-85F | 40 | 535×225×180.4 | 8.791 | 1⅛" / 1⅝" | 2" |
| DIC770-103F | 50 | 535×225×226.3 | 14.185 | 1⅛" / 1⅝" | 2" |
| DIC800-97F | 60 | 570×280×263.5 | 13.342 | 1⅛" / 1⅝" | 2" |
| DIC800-121F | 75 | 570×280×263.5 | 16.731 | 1⅛" / 1⅝" | 2" |
| DIC800-161F | 100 | 570×280×263.5 | 22.341 | 1⅛" / 1⅝" | 2" |
■Dimension
| Size | DIC(N) 193 | DIC(N) 285 | DIC(N) 311 | DIC(N) 328 | DIC(N) 503 | DIC(N) 750 | DIC(N) 770 | DIC(N) 800 |
|---|---|---|---|---|---|---|---|---|
| A | 193 | 285 | 311 | 328 | 503 | 480 | 535 | 570 |
| B | 83 | 105 | 125 | 98 | 123 | 230 | 225 | 280 |
| C | 154 | 230 | 257 | 278 | 450 | 396 | 446 | 475 |
| D | 42 | 50 | 70 | 42 | 70 | 146 | 136 | 185 |
| E | 8+(n×2.35) | 14+(n×2.25) | 14.7+(n×2.2) | 12+(n×1.45) | 19+{(n-3)×2.25)} | 16+(n×2.45) | 9.5+(n×2.55) | 16+(n×2.45) |
| F | 13 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| 중량(KG) | 0.48+N×0.055 | 1.22+N×0.091 | 1.53+N×0.12 | 1.38+N×0.1 | 2.72+N×0.551 | 5.67+N×0.42 | 6.28+N×0.351 | 9.47+N×0.594 |
- BPHE : Brazed Plate Heat Exchanger
- 최대사용압력 : 30kg/㎠
- 상기 사양 이외의 제품도 귀사의 주문에 따라 제작 가능합니다.
- 상기 사양서는 성능개발을 위하여 예고없이 변경될 수 있습니다.
DONG IL BRAZINGBrazing platen heat exchanger, Stainless steel hot water distributor, Nickel brazing heat exchanger
Since founded in 1985, DONG IL has been focusing on the Plate Heat Exchanger and D-MAX Boiler. All employees are certified technical masters, engineers, and technicians and working hard with pride to produce the world-best product. The R&D center spares no effort for R&D, the plant produces the best quality products, and offices around Korea provide perfect sales plans and A/S to give customers the top satisfaction.
Try our products, contact DONG IL any time. You will see diligent, qualified and modest staff. With business expansion through technology development, DONG IL has ISO 9001 quality management system, ISO 14001 environment management system, CE certificate quality product selected by Public Procurement Service, and quality certificate from small and medium Business Administration; and will continue to expedite operation efficiency. I promise you that DONG IL will work hard to be a good company loved by customers.
