Manufacturer
DONG IN ELECTRIC
Brand
-
SKU
85880
Product Name

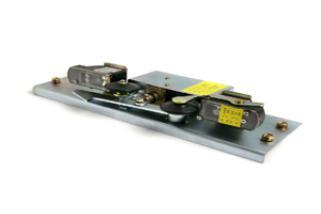

Governor Switch for elevator
Model Name
DI-102
Size
-
Weight
-
Product Details
DI-102 is governor switch used for detecting overspeed, which cuts the power of electric motor and stops elevator car if elevator car operates at over the normal speed and speed indicator points dangerous speed.
Before elevator car exceeds 130% of regular speed, turn governor switch open and cut the power of electric motor and before over 140%, governor switch is turned open and catch governor rope and operates emergency stop.
Features
1. It has acquired movement location with detail level and built-in micro switch
2. Impact and vibration aren’t given to contacts by using actuator so that we can assure mechanical intensity.
3. As a rod lever type, it detects over speed
4. It maintains stable detail contact resistance for thermal resistance
5. Case is made of steel so that it is protected from external force
6. It makes wiring easier in the state of being installed to governor.
Types
| |||||||||||||
Standard features
| TECHNICAL DATA | |
| Contact resistant value | Less than 30mΩ |
| Thrust of contact point | Over 50gf/1 contact |
| Limit temperature | 140℃ |
| Rated voltage | AC230V |
| Rated current | AC2A |
| DIMENSION | |
| Case width | 89.0mm |
| Case depth | 38.0mm |
| Case height | 57.2mm |
| Normal roller stroke | 3.2mm |
| Lever arm length | 19.0mm |
Application
It is installed to governor as shown in right feature and before ascent or descent speed of elevator car arrives at governor’s operation speed catch, elevator lifter should be started to stop.
But this device can operate at the point of the time when rated speed that doesn’t go beyond 1.0m/s arrives at operation speed catch.
