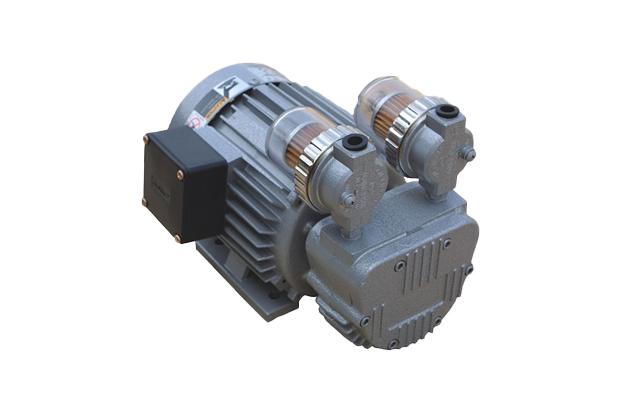

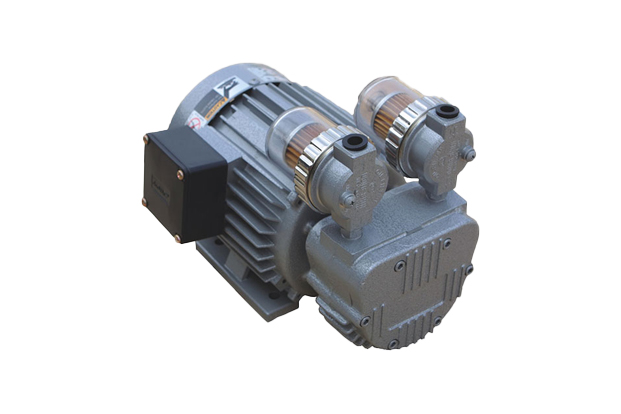

product Image
Rotary Vane Vacuum Pumps
Model Name
SML-280
Series
SML Series
Data
Rotary Vane Vacuum Pumps
Manufacturer information
provider logo
DOOVAC

Vacuum pump manufacturer, Industrial pump, Medical suction, Tank type vacuum pump and more

Problem with product info?
Update request
Manufacturer
DOOVAC
Brand
-
SKU
134389
Product Name
Rotary Vane Vacuum Pumps
Model Name
SML-280
Size
-
Weight
-
Product Details
Technical Data SML 280
Nominal Displacment 50Hz ℓ/min 235
Nominal Displacment 60Hz ℓ/min 280
Ultimate Pressure - mmHg 660
Ultimate Pressure - bar 1.0
Motor Version-3 - V 220/380
Motor Version-1 - V 110/220
Nominal Motor Rating-3 - kW 0.56
Nominal Motor Rating-1 - kW 0.56
Nominal Motor Speed 50Hz min-1 1425
Nominal Motor Speed 60Hz min-1 1725
Sound Level - dB(A) 68
Water Vapour Tolerance Max - mbar -
Water Vapour Capacity - ℓ/h -
Operating Temperature Ambient - °C 40
Weight Appox - kg 25.5



Product Dimension

A Cooling air entry
B Cooling air exit
C Exhaust port
D Inlet flange
E Inlet & exhaust filter
F Pump base



Model a b c d e f g h i j C D
SML-280-BC 320 132 100 185.5 125 135.5 227.5 91.5 208 40 ⅜" ⅜"
SML-280-DC 320 132 100 185.5 125 135.5 227.5 91.5 208 40 ⅜" ⅜"



Performance Curve
