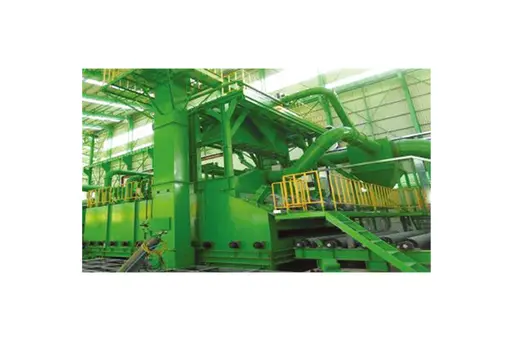

product Image
Steel Plate Shot Blast Machine
Model Name
SP-4500
Data
-
Manufacturer information
provider logo
Doowoong

Shot Blast Machine and Blasting Machine manufacturer

Problem with product info?
Update request
Manufacturer
Doowoong
Brand
-
SKU
141951
Product Name
Steel Plate Shot Blast Machine
Model Name
SP-4500, SP-5500
Size
-
Weight
-
Product Details
  • Use Roller conveyor / Impeller blasting type
  • Features Automatic working methods of production
  • Control panel Steel plate shot blasting
MODEL SP-4500 SP-5500
WORK STEEL PLATE STEEL PLATE
CAPACITY 6T-100T x 4500W mm 6T-100T x 5500W mm
IMPELLER UNIT ø630 x 75HP 8 SET ø630 x 75HP 10 SET
SCREW CONVEYOR CAPACITY : 500 TON/HR CAPACITY : 650 TON/HR
BUCKET ELEVATOR CAPACITY : 500 TON/HR CAPACITY : 650 TON/HR
TYPE : BELT DRIVE TYPE : BELT DRIVE
ROTARY SEPARATOR CAPACITY : 500 TON/HR CAPACITY : 650 TON/HR
TYPE : DRUM SCREW TYPE : DRUM SCREW
STORAGE HOPPER CAPACITY : 25 TON CAPACITY : 30 TON
SHOT GATE : 1200kg/Min SHOT GATE : 1200kg/Min
BLOW - OFF SYSTEM TYPE : AIR BLOWING TYPE : AIR BLOWING
ROLLER CONVEYOR CAPACITY : 4.5-6.0M/Min CAPACITY : 4.5-6.0M/Min
TYPE : INVERTER DRIVE TYPE : INVERTER DRIVE
DUST COLLECTOR CAPACITY : 1000M³/Min CAPACITY : 1200M³/Min
TYPE : AIR PULSE JET TYPE : AIR PULSE JET
CONTROL PANEL AUTO & MANUAL AUTO & MANUAL
Doowoong
Shot Blast Machine and Blasting Machine manufacturer
Founded in March 1991, our company have manufactured machines and parts for surface-treatment machines,(eg : Cleaning, Paint Coating and Anticorrosion powder) for over thirty years. We are known in Korea for the development and production of abrasive blasting equipment and industrial gradeof the highest quality. Many of the components for our blasting equipment are sourced domestically. Using advanced Korean technology, and “Eagle Blast”, our registered brand of abrasive, is competitive in the world market. Our shot blast equipment and vacuum suction units have an excellent reputation and we are continuously developing and improving our products using creative techniques and technology.
Inquiry
