Paper Sanding Machine
Model Name
DY-920
Data
-
Manufacturer information
provider logo
DOYOU MACHINERY

Textile machine manufacturer, Peach skin machine, Automatic rotation dryer, Raising machine, Shearing machine spray and more

Problem with product info?
Update request
Manufacturer
DOYOU MACHINERY
Brand
-
SKU
64077
Product Name
Paper Sanding Machine
Model Name
DY-920
Size
-
Weight
-
Product Details

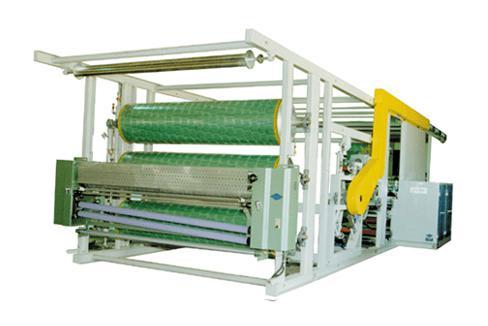

DOYOU MACHINERY Paper Sanding Machine DY-920

특 징

■ 이 기계는 페이퍼 로라가 4EA로 이루어져 있으면 작업이 쉽게 할 수 있는 기계이다.

■ 이 기계는 브러쉬로라가 2ROLL이 장착되어 있으며 분진제거 효과가 우수하다.

■ 이 기계는 마디 감지 장치가 되어 있으면 자동으로 통과되는 장치가 되어 있다.

■ 가공원단은 면 TC, 스판렉스, CN, NP, NC 등 다양한 원단을 가공할 수 있다.



GENERAL

■ Every ROLLER OF 4PCS OPTONALLY ACCORRDING TO THE KIND OF FABRICS AND PROCESSING PURPOSE AND IT IS LOW AND HIGH SPEED REGULAR.REVERSE ROTATION. ALSO SAND PAPER CAN BE USED WITH SELECTION BY EACH MESH

■ THIS MACHINE DESIGNED TO GIVE BEST PROCESSING EFFECT TO THE FABRICS BY USING STEAM CYLINDER EQUIPMENT.

■ THIS MACHIN IS CAN BE CONTINUOUS WORKING TO THE ATTACHMENT AUTO SEAM DETECTOR.

■ AS DUST COLLECTOR EQUIPMENT IS ATTACHED TO THE EVERY ROLL UNDER SIDE&BRUSHING ROLLER SIDE SUDE SUCTION SYSTEM

■ IT HAS TENSION CONTROL SYSTEM BY AIR CYLINDER AT THE MIDDLE OF ELERY ROLLER IN ORDER TO CONTROL TENSION OF THE FABRICS AND TENSION ROLLER UP & DOWN CONTROLLED BY 2 HANDLE

■ THIS MACHINE IS AUTOMATIC CONTROL SYSTEM, SPECIALLY CAN EASY OPERATION MACHINE SYSTEM. PLAITING DEVICE EVERY ROLLER CONTROLLED.

■ THIS MACHINE IS COTTON, TC, SPANDEX, CN, NP, STC

+ AUTOMATIC CONTROL SYSTEM

- ONE TOUCH PUSH BUTTON OPERATION

- AIR CONTROL BY HANDLE 2 EVERY ROLLER REGULAR REVERSE CONTROL

- TENSION 2 ROLLER UP MOVE CONTROL

- FABRICS SPEED METER: MIN / METER

- EXPANDER ROLLER CONTROLLED SYSTEM

- up side fabrics pressing RUBBER ROLLER CONTROL



+ BATCHING SYSTEM

- RUBBER ROLLER

ф150×1830mm : 1PC

ф90×1830mm : 3PCS

- AIR CYLINDER : 2SETS



+ MAIN SANDING ROLLER

- MAIN SANDING ROLLER : ф165×1830 : 4PCS

- TENSION ROLLER : ф76×1830 : 5PCS

- MOTOR : 4SETS(7.5HP)

- AIR CONSUMPTION : 7kg / ㎠

- AIR CYLINDER T0TAL 8SETS

- SPEED MOTOR V.S 7.5×1

- HIGH VALUE ADDED RANGING

- BETWEEN 1500~2000y/h FOR

- APPROPRIATE MATERIALS



+ HIGH PRESSURE STEAM CYLINDER

- HIGH PRESSURE STEAM CYLINDER MAX STEAM

PRESSURE : 5Kgs / ㎠

DIA METER : ф600mm×WIDTH 1,830×4SETS, ф950mm×WIDTH 1,830×1SET

- MATERIAL : STAINLESS STEEL SUS 304

- STEAM INLET & CYLINDER INSIDE WATER OUT SYSTEM

- MAX TEMPERATURE : 50



+ PLITING SYSTEM

- AUTOMATIC PLAITING SYSTEM.

- FINISHED PROCESSING FABRICS FOLDING.

- BELT MOVING SYSTEM.

- TEXTER, GUIDE SYSTEM.

- DUST SYSTEM.



■ 根据不同的織物和加工意圖,由4憾砂皮戒平操作,定時機器的高低速度.

■ 潼邊轉動,可通過各憾網眼,使用砂紙來摩擦

■ 通過使用蒸氣圓柱設備能給予織物帶平最好的加工效果.

■ 能持續工作幷附有自動縫合檢測器.

■ 除塵裝置設備附有砂皮戒和刷毛戒,幷裝有過濾裝置系統.

■ 通過在砂皮戒中央的氣缸來控制系統,目的是爲了控制織物的張力,用2憾把手來調節張力戒的松緊

■ 該機器爲自動控制系統,是極其簡單的操作系統.平幅裝置由砂皮戒來控制.

■ 可加工 棉, , TC, CN, SPANTEX, NC, TASALAN等面料.



自動控制系統:AUTOMATIC CONTRAL SYSTEM

■ 由一憾接觸按瞿來控制.

■ 空氣調節由2憾砂皮戒把手有規律性地反轉控制.

■ 2根張力戒控制移動.

■ 織物速度計量器單位:MIN/METER

■ 滾筒消耗控制系統

■ 上方織物加工由橡膠戒控制
