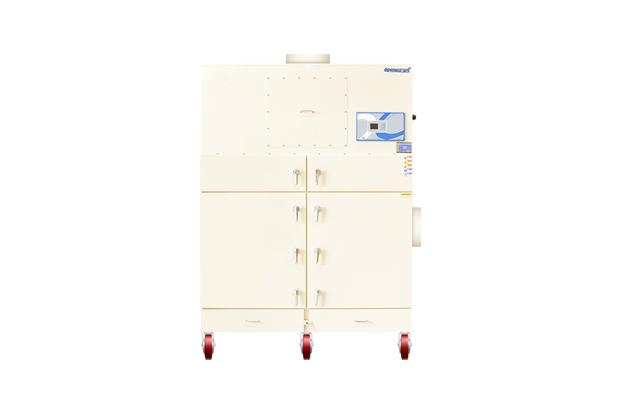

Automatic Fume Collector (FC Series)
Model Name
FC-100
Series
Fume Dust Collector
Data
-
Manufacturer information
provider logo
DUCLEAN

Dust collector manufacturer, Environmental equipment, Air pollution prevention facility and more

Problem with product info?
Update request
Manufacturer
DUCLEAN
Brand
-
SKU
133933
Product Name
Automatic Fume Collector (FC Series)
Model Name
FC-100, FC-200, FC-300, FC-500, FC-750, FC-1000, FC-1500
Size
-
Weight
-
Product Details

Features

Availalbe for 24 hours of continuous use, easy dust treatment and economical



Filter Type

Water repellent, flame retardant, antistatic, possible to select membrane



Application

Laser, plasma processing machine, general welding, cutting



Specifications

Product Specifications

TYPE Air volume(CMM) static pressure(mmAq) output(Kw) size weight(kg)
A width B length C height D total width E total length F total height G inlet(Ø) H outlet(Ø)
FC-100 12 230 0.75 620 620 1880 784.5 642 2022 150 200 210
FC-200 30 230 1.5 750 750 1925 902 772 2128 200 200 280
FC-300 40 230 2.2 850 750 1975 1010 772 2178 250 250 350
FC-500 65 230 3.7 1340 870 2020 1492 892 2233 250 300 460
FC-750 80 250 5.5 1700 900 2163 1836 922 2391 300 350 510
FC-1000 100 250 3.7X2SET 1950 1000 2250 2110 1022 2485 350 400 850
FC-1500 150 250 5.5X2SET 2012 1102 2284 2170 1122 2534 400 450 1150



Power and Filter Specifcations

TYPE Power filter
60Hz(Premium),50Hz size quantity type
FC-100 220V 1P AC
220V / 380V 3P 60Hz
440V(Option), 50Hz(Option)
Ø165X880L 6 flame retardant
NOMEX
PTFE(membrane)
FC-200 9
FC-300 220V / 380V 3P AC 60Hz
440V(Option), 50Hz(Option)
12
FC-500 18
FC-750 24
FC-1000 Ø165*1000L 24
FC-1500 32

※ This specification may change without notice for performance improvement.



Filter

FC Series Filter Information

· Equipped with cartridge filter, it has wide filtration area and it is easy to replace by integrating with cell plate.

· The material is PET, membrane, Nomex, etc., and water-repellent antistatic (aluminum) treatment is applied according to the purpose.

Water repellence

Prevents water invasion but lets air permeation

Flame retardance

Fire does not spread well

Antistatic(aluminum)

Superb antistatic

Membrane

Filtration efficiency of 0.3 fine dust is 99.9%, no fine dust emission, excellent dust removal performance
extended filter life, response to environmental regulation

Membrane Filter

Characteristics of PTFE

· Heat and cold resistance: 150 degrees of usage temperature

· Chemical resistance: Inert to acid, alkali, etc.

· Electrical features: high insulation, high frequency

· Non-adhesive, combustion resistant



Features

Flame Settling Device (Optional)

Device that primarily settles flames so that they are not intaken into the filter and used for work that generates sparks during cutting, grinding and processing



Calcium Carbonate Automatic Feeding Device (Optional)

• It is an automatic calcium carbonate feeder that suppresses fire and improves efficiency of dust removal.

• It can be remotely put in place, so there is no restriction in installation locations.

• Level gauge and warning lamps are used to alarm the lack of calcium carbonate in advance.

• Dust collector interlocking operation is possible and the optimum supply amount is inputted according to the set value to increase operator's convenience.



TURBO BLOWER Information

 In-house turbo fan production for the most efficient performance management system

High air volume

high wind pressure

low vibration

low noise



Controller

The digital controller that puts your convenience as its number one priority

• Color display considering visibility

• Soft touch method

• Interface: Adopted standard mode that can be linked to external contacts

• Error Report: Displaying error alarm and alarm history when error occurs

• Dedicated Inverter Controller: Manual/Auto control of inverter

• Digital differential pressure, digital current, operation integration, error status display functions, etc.
