This product is manufactured by
DUKIN INDUSTRIES
TOP
Model Name
KSO-G03-4C-20
Data
카탈로그-득인기공-DIRECTIONAL CONTROL VALVE-SOLENOID OPERATED VALVE-KSO-G03-4C-20
Manufacturer information
DUKIN INDUSTRIESHydraulic machine manufacturer, Hand pump, Hydraulic valve, Unit, Cylinder
Problem with product info?
Update request
Manufacturer
DUKIN INDUSTRIES
Brand
-
SKU
125688
Product Name

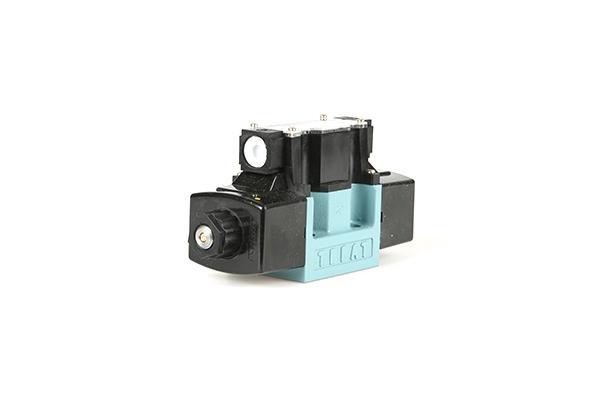

SOLENOID OPERATED VALVE
Model Name
KSO-G03-4C-20
Size
-
Weight
-
Product Details
제품특징
· Wet type이기 때문에 내구성이 우수하고 절환음이 고요합니다. 또 습동부의 SEAL이 없기 때문에 누유 염려가 없다.
· 전선 배선을 축선으로 2중 설치한 Terminal box type으로 설계됨으로 배선이 용이하다.
· Valve 중량의 경량화를 통한 취급 및 보수가 용이하다.
· Valve의 이탈착이 용이하도록 취부 hole이 외부로 노출되어 있다.
· 통전상태가 lamp로 표시되므로 시운전 및 보수가 용이하다.
압력 강하 특성
압력 유량 특성
형식 기호
사양
| 호칭경 | 최고사용 압력 | 최대유량 | 허용배압 | 최고절환빈도 | 추천주위온도 | |
|---|---|---|---|---|---|---|
| 03(⅜) | 250kgf/㎠ | Model표 참조 | 250kgf/㎠ | 60회/분 (정류기 부착) | -15℃ ~ 50℃ | |
| 120회/분 (DC) | ||||||
| 240회/분 (AC) | ||||||
| 상대습도 | 방수,방진 | 취부치수 | 중량 | |||
| 0 ~ 95% | IEC Pub. 529 IP 65 | ISO 4401 05 | AC(DOUBLE SOLENOID) 3.6kg | |||
| AC(SINGLE SOLENOID) 2.8kg | ||||||
| DC(DOUBLE SOLENOID) 5.1kg | ||||||
| DC(SINGLE SOLENOID) 3.7kg | ||||||
외형 치수도
단면 구조도
SEAL 부품 일람표
| NO | 부품명칭 | 명 칭 | 수량 | |
|---|---|---|---|---|
| C,N,D 형 | A,B 형 | |||
| 1 | O-ring | 1AP22 | 2 | 2 |
| 2 | O-ring | AS568-014(Hs90) | 5 | 5 |
| 3 | O-ring | AS568-022(Hs70) | 4 | 2 |
| 4 | O-ring | 1AP5 | 1 | 1 |
| 5 | O-ring | 1AP4 | 4 | 2 |
| 6 | O-ring | AS568-006(Hs70) | 2 | 1 |
