This product is manufactured by
DUKIN INDUSTRIES

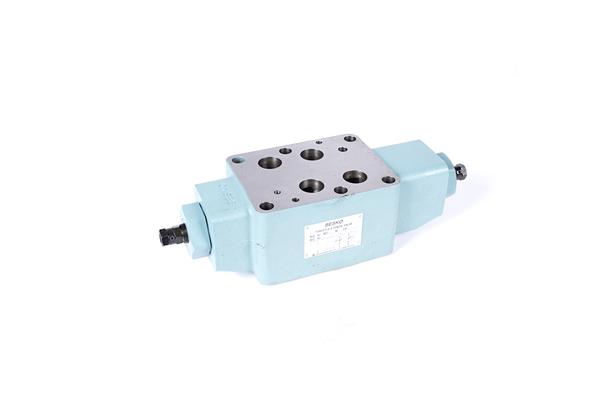

THROTTLE & CHECK VALVE
Model Name
MT-06
Data
카탈로그-득인기공-STACK VALVE-THROTTLE & CHECK VALVE-MT-06
Manufacturer information
DUKIN INDUSTRIES
Hydraulic machine manufacturer, Hand pump, Hydraulic valve, Unit, Cylinder
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DUKIN INDUSTRIES
Brand
-
SKU
126384
Product Name
THROTTLE & CHECK VALVE
Model Name
MT-06
Size
-
Weight
-
Product Details
압력 강하 특성
| 조정나사 회전수별 유량 특성
|
형식 기호
사양
| 형식기호 | 최고사용압력 MPa(kgf/㎠) | 최대사용유량 (ℓ/min) | CRACKING 압력 MPa(kgf/㎠) | 무게 (kg) |
|---|---|---|---|---|
| MT-06※※-20-* | 31.5(315) | 500 | 0.15(1.5) | 13.6 |
외형 치수도
단면 구조도
O-RING SIZE
| 품번 | 명칭 | 개수 | 부품사양 | ||
|---|---|---|---|---|---|
| 1 | O-ring | 2(1) | 1BP 38 | ||
| 2 | O-ring | 2(1) | 1AP 16 | ||
| 3 | Back up ring | 2(1) | P16용 | ||
| 4 | O-ring | 4 | 1BP 29 | ||
| 5 | O-ring | 2 | 1BP 21 | ||
