Shrink Tunnels
Model Name
-
Series
Packaging Line
Data
-
Manufacturer information
provider logo
FARBAL

Film Shrink-wrapping Machine Manufacturer, Sleeve Wrapping Machines, Shrink Tunnels and more

Problem with product info?
Update request
Manufacturer
FARBAL
Brand
-
SKU
136590
Product Name
Shrink Tunnels
Model Name
-
Size
-
Weight
-
Product Details

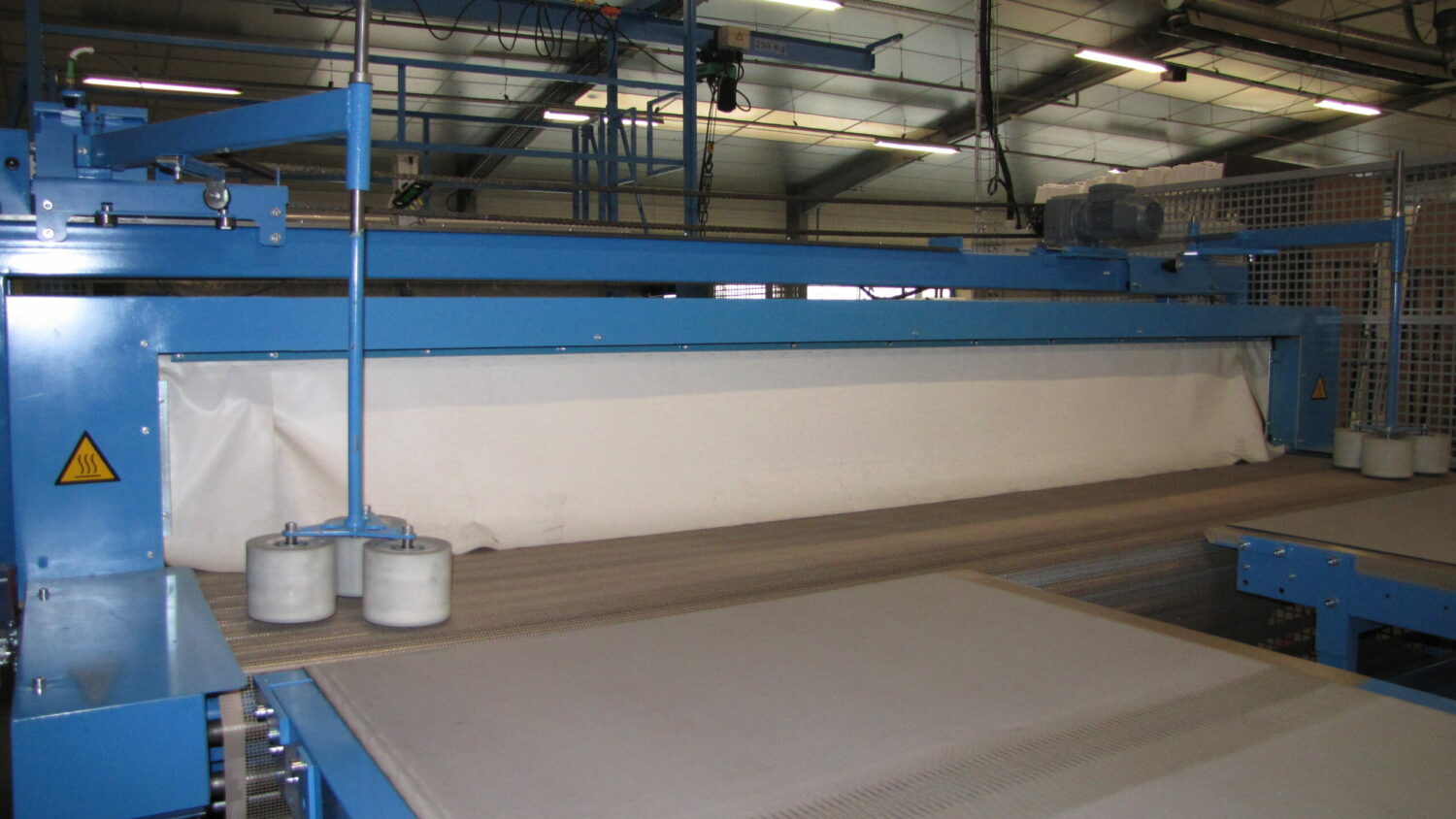

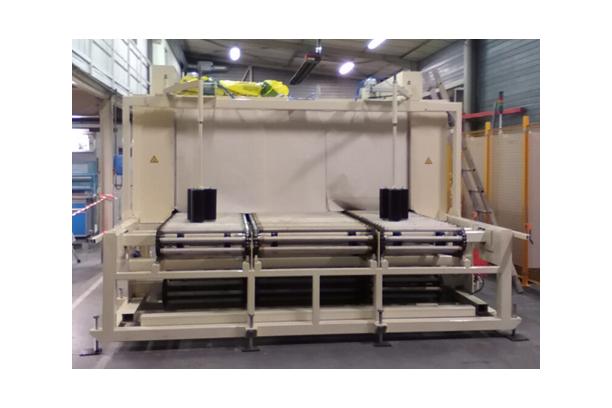

FARBAL shrink tunnels feature good output and excellent thermal insulation.

They are driven by mobile bar or grid conveyor belts, with speeds that can be set from 2 to 30 metres per minute and power from 12 to 120 kW.

Through heights of 200 to 1400 mm and widths between 400 and 3500 mm.

Operating principle

The shrink tunnels retract the PE (polyethylene) film enveloping the sleeve-wrapped product, to create a compact to create a compact, high strength package.

Hot air ventilation inside the tunnel is used for the retraction process. At the tunnel exit, the PE (polyethylene) film is pasted against the side of the product to create the side seal.

Shrink tunnels may be synchronised with all PE (polyethylene) packaging machines on the packaging line (PE film is 100% recyclable).

FARBAL
Film Shrink-wrapping Machine Manufacturer, Sleeve Wrapping Machines, Shrink Tunnels and more
Farbal has been manufacturing film shrink-wrapping machines for large-very large products since 1974. Number 1 in France, it manufactures all the components in a packaging line: sleeve wrapping machines, shrink tunnels, side cutting and side sealing units, as well as various handling accessories. In both standard and tailor-made sizes, Farbal machines are especially suited for the packaging of oversized or irregularly-shaped products, at slow or fast throughputs. Farbal technicians are specialists who understand perfectly all constraints associated with packaging products of all dimensions. They have access to an extensive database of tried and tested technical solutions, as well as a 3D-CAD system adapted to modular concepts. They also use an efficient EDP tool that produces quotations quickly for speedy production. Available and accustomed to high-level dialogue, they will be able to suggest the best technical solutions at a very competitive cost. Quality, reliability, and service: in a word, peace of mind. Choosing a Farbal machine means opting for long-term investment, built on a strong partnership and mutual trust.
