This product is manufactured by
FINE MECHATRONICS
Small Products
Model Name
FAC-5900 MW-Series
Data

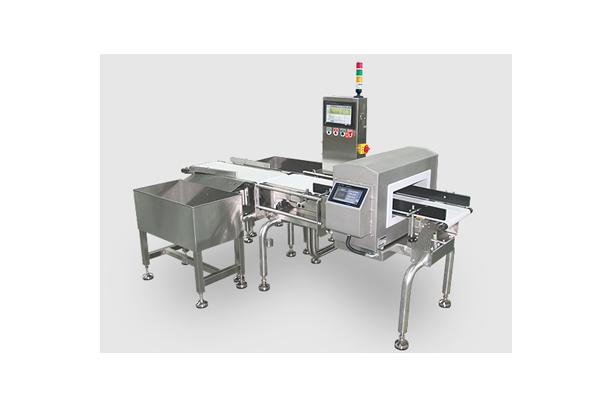

Manual-Fine Mechatronics-Checkweigher & Metal Detector Combination Systems-Small Products
Manufacturer information
FINE MECHATRONICS
Weighing system manufacturer, Weight Automatic check weigher, Metal detector, Indicator and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
FINE MECHATRONICS
Brand
-
SKU
126599
Product Name
Small Products
Model Name
FAC-5900 MW-Series
Size
-
Weight
-
Product Details
External Dimensions (unit: mm)
| MODEL | MW100 | MW150 | MW200 | MW250 | MW300 | MW350 | MW400 | |
| B(belt width) | 100 | 150 | 200 | 250 | 300 | 350 | 400 | |
| AW | 200 | 250 | 300 | 350 | 400 | 450 | 500 | |
| C2 | 900/300, 900/350, 900/400, 900/450 | 900/450, 900/500, 900/550, 900/600, 900/650 | ||||||
| C3 | ||||||||
| L | C2+ C3 | C2 + C3 | ||||||
Specifications
| MODEL | MW100 | MW150 | MW200 | MW250 | MW300 | MW350 | MW400 |
| Maximum capacity | 300g | 600g | 1200g | 3000g | 6000g | ||
| Weigh range | 3~300g | 6~600g | 12~1200g | 30~3000g | 60~6000g | ||
| Scale interval | 0.05g | 0.1g | 0.2g | 0.5g | 1g | ||
| Maximum accuracy* | ±0.15g | ±0.3g | ±0.6g | ±1.5g | ±3g | ||
| Maximum weighing speed** | 300ea/min | 250ea/min | 200ea/min | 150ea/min | 100ea/min | 75ea/min | |
| Power requirements | 220VAC±10%, Single phase,50/60Hz | ||||||
| Environmental conditions | 5˚C~35˚C(41˚F~95˚F), Variation not to exceed ±2˚C(4˚F)/hr, Relative humidity: 35%~85% | ||||||
* Maximum accuracy may change depending on the product conditions.
** Maximum weighing speed may change depending on the product dimension and converyor speed.
