Manufacturer
HAN IL MACHINERY
Brand
-
SKU
9618
Product Name

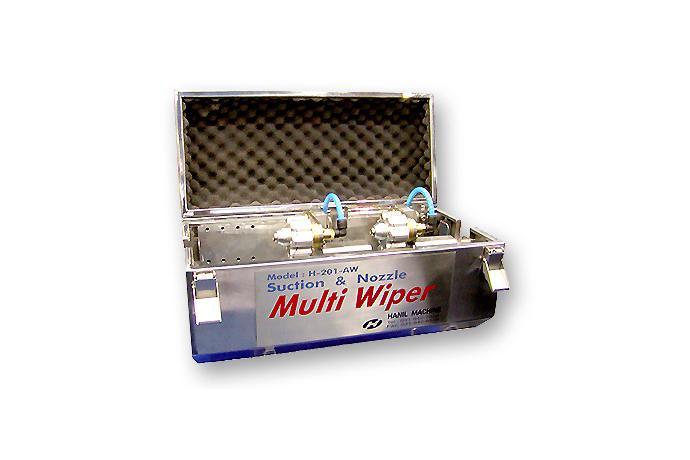

Multi type air wiper
Model Name
H-201-AW
Size
-
Weight
-
Product Details
Specifications
Use : Wire water & mist elimination
Pneumatic source : Min 5.0 psi
Detail : 6 stage seperate hole dia
Line speed : Max. 300m/min(single mode)
Air consumption : 0.5~6.0 cum/hour
A noise : 60~80 db
Model list
AW0408 - 04, 06, 08mm(6 section-each 2section)
AW0414 - 04, 06, 08, 10, 12, 14mm(6 section)
AW0424 - 04, 08, 12, 16, 20, 24mm(6 section)
AW2555 - 25, 35, 45, 55mm(4 section)
Case dimension
1. AW0408C, AW0414C, AW0424C - 200 × 220 × 300mm
2. AW0414DC - 200 × 220 × 450mm
3. AW2555C - 250 × 250 × 350mm

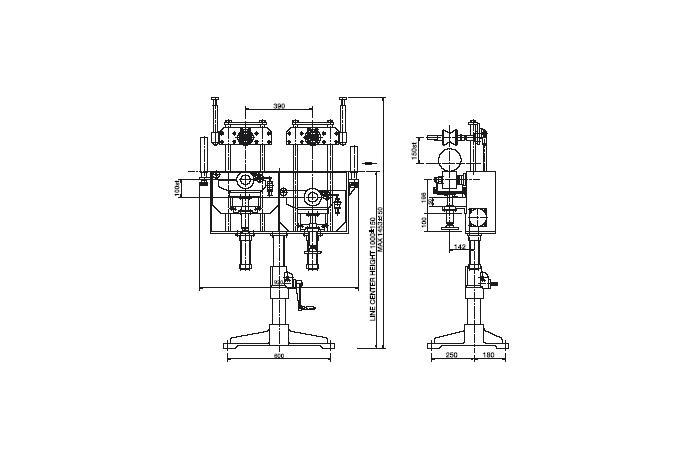

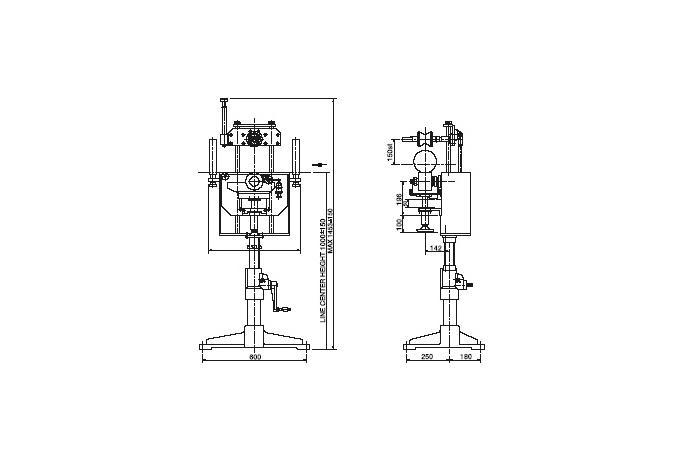

Diagram
More products

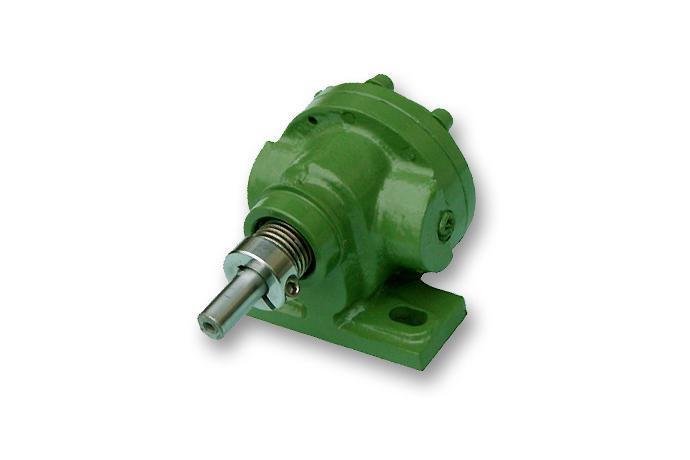

Geard type ink pumpH-IP
Single head high speed printerH-862-HS
코로나처리기H-2KF-HS
잉크펌프H-150BR

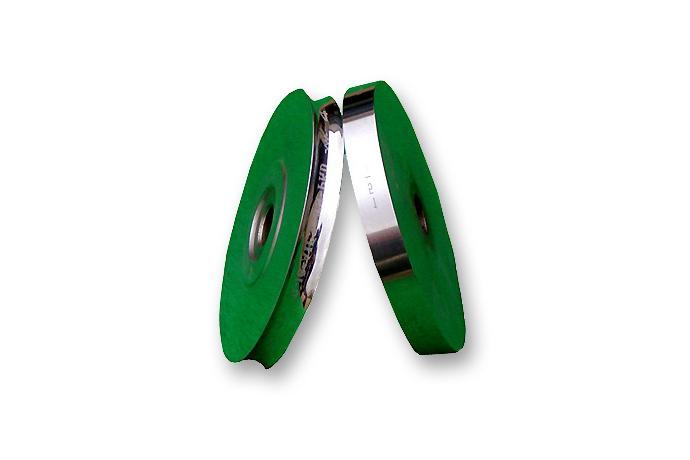

Name rollerH-NR

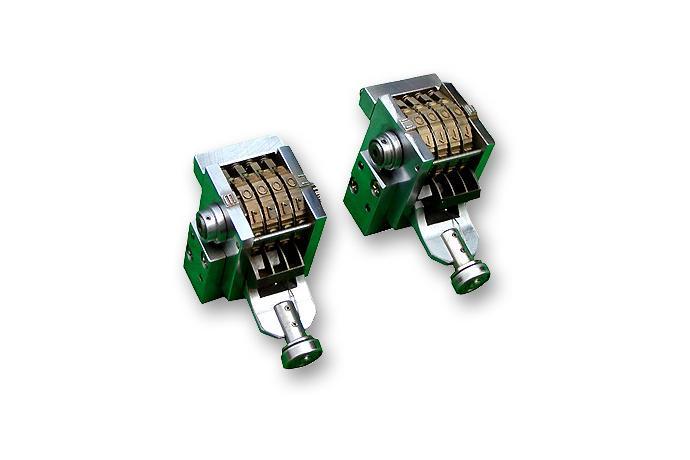

Number-ring counter setH-NCS
Ink doctor knifeH_IDK

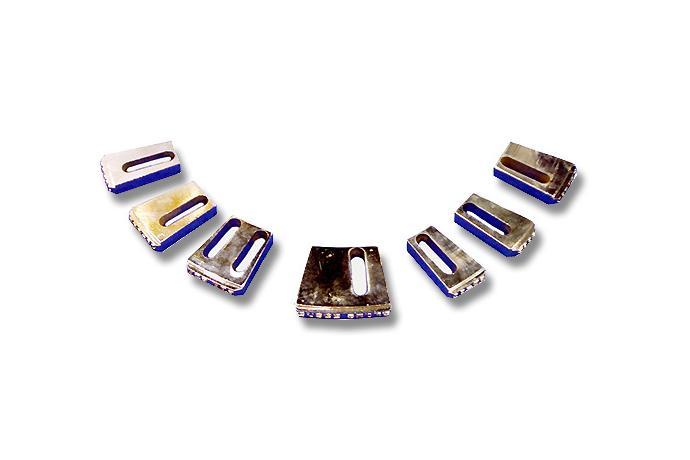

Segment type metalH-STM
