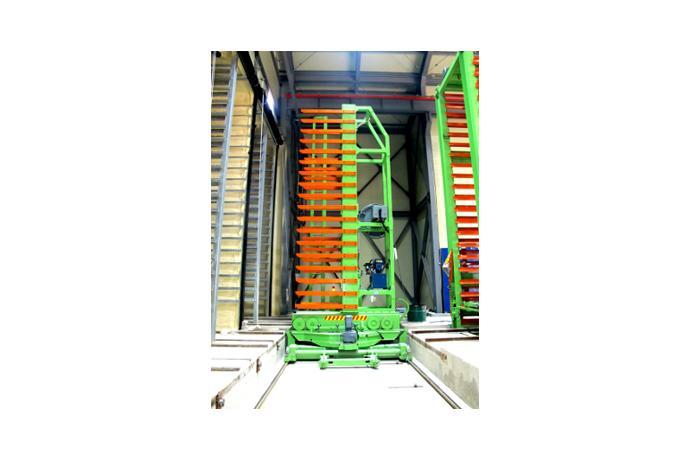

Finger Car:
- A track-bound car that transports pallets with green blocks from elevator to a specified location of a specified chamber of curing room and cured blocks from a specified location in ;a specifiied chamber of curing room to lowerator.
Maximum load: 20 ton
Number of floors (forks) and pallets per floor: 18 floors x 1 pallet
Distance between floors: 400 mm
Pallet size: 1,400 x 1,150 x 18 mm
ย
Traveling Platform
Cable locking device and collector arm
ย
Traveling Car
Lifting frame and fork
Driven by motor. Supply of electricity via cable drum
ย
Drive
Driven by AC motor. Speed controlled by frequency regulator (9-step control)
ย
Locking Roller Stopper
Position sensor senses the exact position for finger car tostop, and locking roller locks so that finger car stays at the exact position.
ย
Electric Supply
Electricity is supplied to traveling car via rope cable.
Cable trolley and guide rail included
ย
Finger Car Control
Communication with main control and cuber control
Infinitely variable speed control by frequency regulator
Modular PLC mounted in the control panel
CPU includes two microprocessors.
