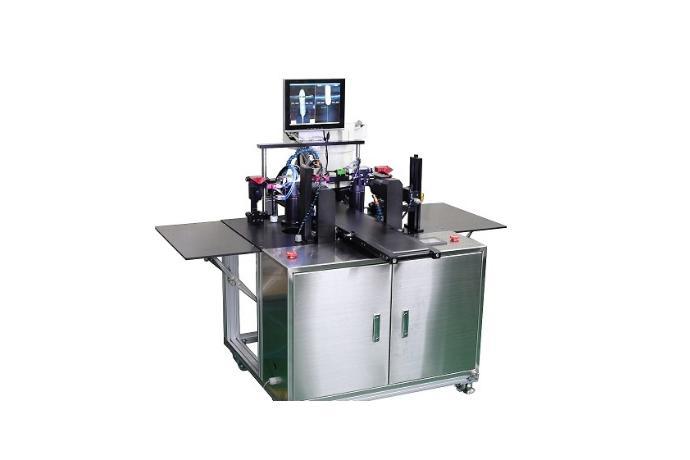

Ultra Grafting Robot
Model Name
AFGR-800CS
Data
-
Manufacturer information
provider logo
HELPER ROBOTECH

Manufacturer of Smart seeding system, Seeder, Power planter, Forest cultivating system and more

Problem with product info?
Update request
Manufacturer
HELPER ROBOTECH
Brand
-
SKU
25276
Product Name
Ultra Grafting Robot
Model Name
AFGR-800CS
Size
-
Weight
-
Product Details

AFGR-800CS

•Applicable vegetable: watermelon, melon, cucumber, melon, red pepper, tomato

•Productivity: over 800 trees (When skilled, work efficiency is highly increased)

•Main composition: grafting robot+tongs supply apparatus+air compressor(option 3HP)

•Grafting tongs: Specified plastic tongs(Option)

•Dimension/Weight: 670D×1,080W×950H / 170kgs (Not included in our supply scope)

•1Φ220V 300W (Air compressor not included)

•Manpower of Use: Rootstock supply 1 person, scion supply 1person, assistant manpower 0.25 person

•Composition of economic operation team : When composing grafting line after installing 4 sets it can be composed of 9 persons.




Cucurbitaceae grafting process

HELP PERSYS Ultra Grafting Robot AFGR-800CS

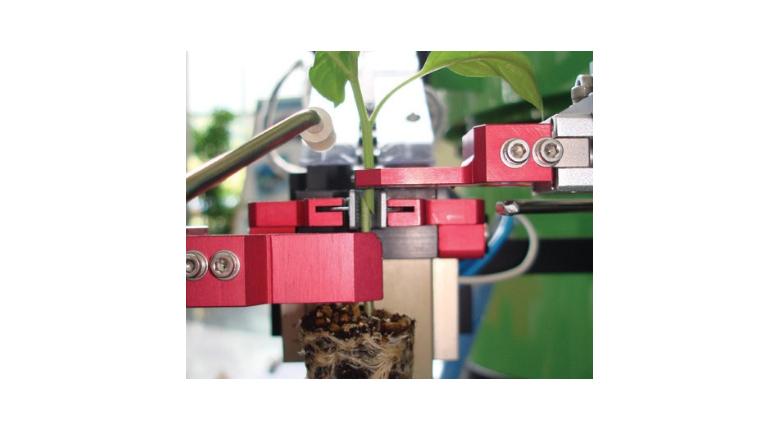

Solanaceae grafting process

HELP PERSYS Ultra Grafting Robot AFGR-800CS 1

HELPER ROBOTECH
Manufacturer of Smart seeding system, Seeder, Power planter, Forest cultivating system and more
Helper Robotech has been participating in the development of raising the seed industry in Korea by developing automated machines for raising seeding plants for nearly 20 years. Helper Robotech’s automated seeding system operates in almost every plant nursery in the country and is a grafting robot with competitive technology and economic feasibility recognized by the global market with the attention and support of the company’s customers. We appreciate your continued support. Currently, we have been extending our businesses from the development of a potted-plant transplanting robot and forest cultivating automated facilities to palm and rubber trees cultivating facilities for tropical countries. We will do our utmost to retain the trust of our customers and keep up and thrive with the trends of technical advancement in our efforts to build up customer loyalty.
