Overview

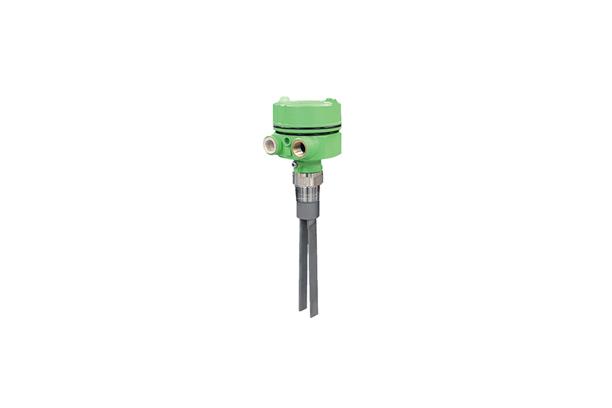

HTM(HPV)-20N Series is a Vibration Type Level Switch which measures a level of solid and powder and is commonly called a Tuning Fork Type. It consists of a membrane and stainless steel tuning forks and is mainly used for alarm or process control by detecting of powder and particle.
Characteristics
- Various kinds of powder or solid levels can be detected.
- Suitable to measure powder and big particle.
- Strong structure and applicable to heavy weight medium due to stainless steel vibration part.
- Applicable to explosion and dust area (Ex-Proof and Dust-Proof version)
- Digital Operating System based on Microprocessor.
- Easy setting, stable operating and improved maintenance by dial adjustment.
- Monitoring function through laptop connecting using USB port of PC.
- Monitoring function through Smartphone (Android OS) connecting using OTG.
- Easy setting and maintenance with Key Button
- Measurement Range Setting is available.
- Adjustment of Delay and Return Time of Relay Contact is available
- Easy Controlling of Relay Contact (NO, NC)
- AC Free voltage and DC 24V both are available.
- Operating can be checked through LED indicator.
Operation Principle
Tuning forks of the level switch are continuously vibrated by an oscillator of piezo sensor. When the medium contacts to the tuning forks, the oscillator of piezo sensor is stopped by decreased vibration frequency. At this very moment, level switch detects the changed frequency and produce a relay output signal.
Specification
▶ Standard Version
▶Ex-Proof Version
Dimension
▶ Standard Version
|
HTM-20N(H)-A (Screw type) |
HTM-20N(H)-B (Screw type) |
HTM-20N-C (Screw type) |
|
HTM-20N(H)-B (Flange type) |
HTM-20N-C (Flange type) |
▶ Ex-Proof Version
|
HPV-20N(H)-A (Screw type) |
HPV-20N(H)-B (Screw type) |
HPV-20N(H)-B (Flange type) |
* Actual Product may have a tolerance slightly.
Installation
Belower recommendation should be considered when installation.
