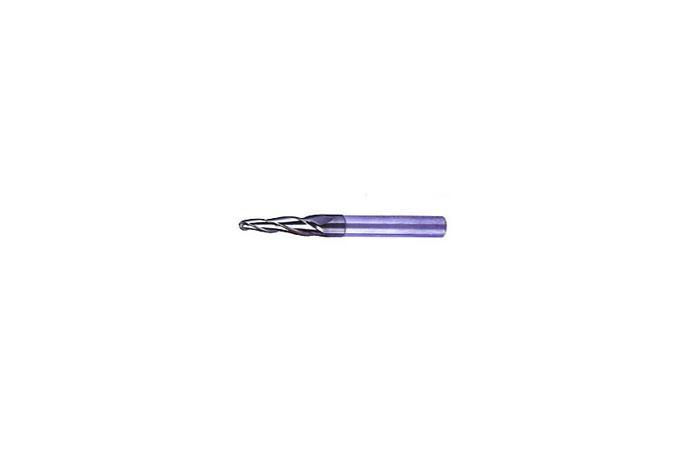

TB504 ○○○○○ series(Solid Type)
CODE |
DIMENSIONS(mm) |
||||
D |
R |
θ |
OAL |
SH.Dia |
|
HTBE 4050 |
5 |
2.5 |
3˚ |
60 |
8 |
HTBE 4060 |
6 |
3.0 |
3˚ |
70 |
10 |
HTBE 4080 |
8 |
4.0 |
3˚ |
75 |
12 |
HTBE 4100 |
10 |
5.0 |
3˚ |
75 |
12 |
HTBE 4120 |
12 |
6.0 |
3˚ |
90 |
16 |
HTBE 4050 |
5 |
2.5 |
5˚ |
70 |
10 |
HTBE 4060 |
6 |
3.0 |
5˚ |
70 |
10 |
HTBE 4080 |
8 |
4.0 |
5˚ |
75 |
12 |
HTBE 4100 |
10 |
5.0 |
5˚ |
90 |
16 |
HTBE 4120 |
12 |
6.0 |
5˚ |
100 |
20 |
HTBE 4050 |
5 |
2.5 |
7˚ |
70 |
10 |
HTBE 4060 |
6 |
3.0 |
7˚ |
75 |
12 |
HTBE 4080 |
8 |
4.0 |
7˚ |
90 |
16 |
HTBE 4100 |
10 |
5.0 |
7˚ |
90 |
16 |
HTBE 4120 |
12 |
6.0 |
7˚ |
100 |
20 |
