Hardmetal tool, Drill, End mill. Reamer, Cutter blade

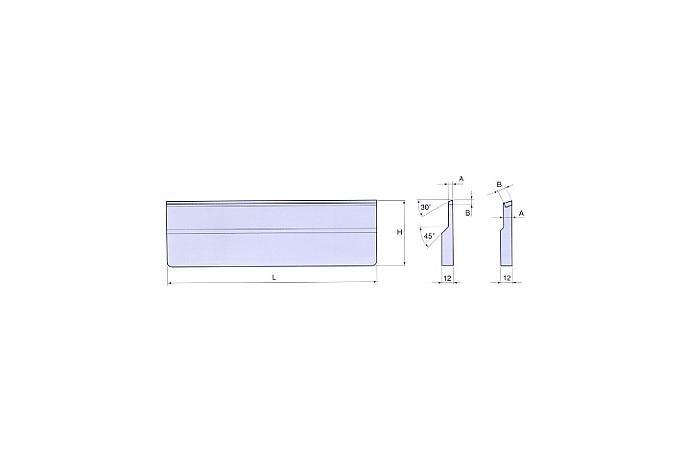

WB1○○ series(Type 1)
(Unit:mm)
CODE |
FLUTE |
DIMENSIONS(mm) |
CODE |
FLUTE |
DIMENSIONS(mm) |
||||||
H |
L |
A |
B |
H |
L |
A |
B |
||||
WB 101 |
1 |
76 |
350 |
4 |
4 |
WB 128 |
2 |
89 |
350 |
8 |
8 |
WB 102 |
1 |
76 |
420 |
4 |
4 |
WB 129 |
2 |
89 |
420 |
8 |
8 |
WB 103 |
1 |
76 |
610 |
4 |
4 |
WB 130 |
2 |
89 |
610 |
8 |
8 |
WB 104 |
1 |
89 |
350 |
4 |
4 |
WB 131 |
2 |
76 |
350 |
9 |
9 |
WB 105 |
1 |
89 |
420 |
4 |
4 |
WB 132 |
2 |
76 |
420 |
9 |
9 |
WB 106 |
1 |
89 |
610 |
4 |
4 |
WB 133 |
2 |
76 |
610 |
9 |
9 |
WB 107 |
1 |
76 |
350 |
4 |
5 |
WB 134 |
2 |
89 |
350 |
9 |
9 |
WB 108 |
1 |
76 |
420 |
5 |
5 |
WB 135 |
2 |
89 |
420 |
9 |
9 |
WB 109 |
1 |
76 |
610 |
5 |
5 |
WB 136 |
2 |
89 |
610 |
9 |
9 |
WB 110 |
1 |
89 |
350 |
5 |
5 |
WB 137 |
2 |
76 |
350 |
10 |
10 |
WB 111 |
1 |
89 |
420 |
5 |
5 |
WB 138 |
2 |
76 |
420 |
10 |
10 |
WB 112 |
2 |
89 |
610 |
5 |
5 |
WB 139 |
2 |
76 |
610 |
10 |
10 |
WB 113 |
2 |
76 |
350 |
6 |
6 |
WB 140 |
2 |
89 |
350 |
10 |
10 |
WB 114 |
2 |
76 |
420 |
6 |
6 |
WB 141 |
2 |
89 |
420 |
10 |
10 |
WB 115 |
2 |
76 |
610 |
6 |
6 |
WB 142 |
2 |
89 |
610 |
10 |
10 |
WB 116 |
2 |
89 |
350 |
6 |
6 |
WB 143 |
2 |
76 |
350 |
11 |
11 |
WB 117 |
2 |
89 |
420 |
6 |
6 |
WB 144 |
2 |
76 |
420 |
11 |
11 |
WB 118 |
2 |
89 |
610 |
6 |
6 |
WB 145 |
2 |
76 |
610 |
11 |
11 |
WB 119 |
2 |
76 |
350 |
7 |
7 |
WB 146 |
2 |
89 |
350 |
11 |
11 |
WB 120 |
2 |
76 |
420 |
7 |
7 |
WB 147 |
2 |
89 |
420 |
11 |
11 |
WB 121 |
2 |
76 |
610 |
7 |
7 |
WB 148 |
2 |
89 |
610 |
11 |
11 |
WB 122 |
2 |
89 |
350 |
7 |
7 |
WB 149 |
2 |
76 |
350 |
12 |
12 |
WB 123 |
2 |
89 |
420 |
7 |
7 |
WB 150 |
2 |
76 |
420 |
12 |
12 |
WB 124 |
2 |
89 |
610 |
7 |
7 |
WB 151 |
2 |
76 |
610 |
12 |
12 |
WB 125 |
2 |
76 |
350 |
8 |
8 |
WB 152 |
2 |
89 |
350 |
12 |
12 |
WB 126 |
2 |
76 |
420 |
8 |
8 |
WB 153 |
2 |
89 |
420 |
12 |
12 |
WB 127 |
2 |
76 |
610 |
8 |
8 |
WB 154 |
2 |
89 |
610 |
12 |
12 |
