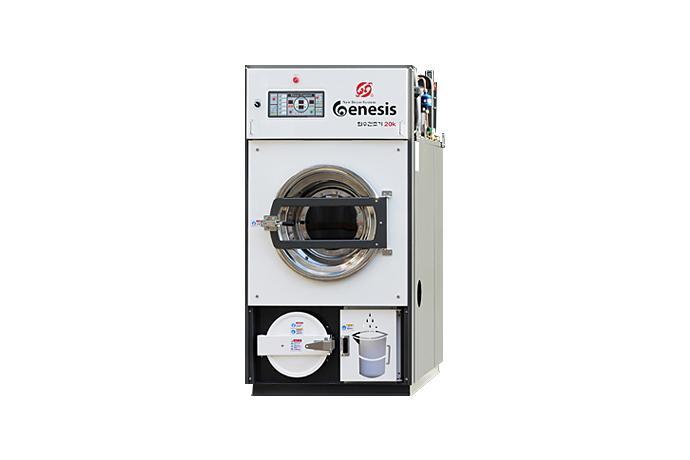

Recovery Dryer (Single-Unit)
Model Name
HS-0999
Series
Drying Machine
Data
-
Manufacturer information
provider logo
HWASUNG WASHING MACHINE

Washing Machine Manufacturer, Dry Cleaning, Washing Machine, Dryer, Press, Roller and more

Problem with product info?
Update request
Manufacturer
HWASUNG WASHING MACHINE
Brand
-
SKU
28235
Product Name
Recovery Dryer (Single-Unit)
Model Name
HS-0999
Size
-
Weight
-
Product Details

Special Feature

- A solvent recovery dryer is all in one recycling machine that has feature of condenser and cooling system for the emission of volatile organic compound (VOS) in the atmosphere.

- Applied the hydrocarbon machine that we exporting to U.S.A with same method of cooling system for the safety and excellent durability to fulfill our mission.

- Freezing device has excellent durability of water cooling system that effects no temperature change in all seasons.

- Compared with air cooling system, it gives simple installation and not provide heat to the interior so it can maintain a healthy environment.

- With full sealed structure it lets a source way to block the toxic substance and textile Party to protect business owner’s health.

- We are very proud of our perfect safety device.

- It equipped with static suppressing device
  (Auto steam injection) explosion stability device.(Auto relief damper system) and auto humidity support, auto pressure-resistant discharge system, and interior of high and low voltage pressure sensors, built in condensing pressure of control sensor pressure, ETL APPROVED in USA for safety and dependability smartly designed for maximum performance and efficiency of recovery drying machine.



Specifications

MODEL

HS-0999(22kg)

System

Installation

-

(One-unit type)

Recovery

-

(Airtight rotary type)

Refrigeration

-

R-404A

Compressor

-

2.2/3

Capacity

cooling

kcal/h(R/T)

9,000[3.0R/T]

Drying capacity

kg/Ibs

20/45

Recovery

%

95% ~

Piping dimensions

Solvent

mm

12

Water drainage

mm

15

Drain

mm

15

External form

Product

W×H×D(mm)

880×1,170×1,800

Basket

Φ×D(mm)

800×700

Weight

kg/Ibs

400/882

Electric

Power Supply

Φ/volt.Hz

3Φ,380v,60Hz

Power

kw

3.0
